| Part number | SiLM8253-AQ |
|---|---|
| Datasheet | SiLM8253-AQ-Sillumin.pdf |
| File Size | 647.39 KB |
| Manufacturer | Sillumin |
| Description | Dual Channel Isolated Gate Driver |
|
|

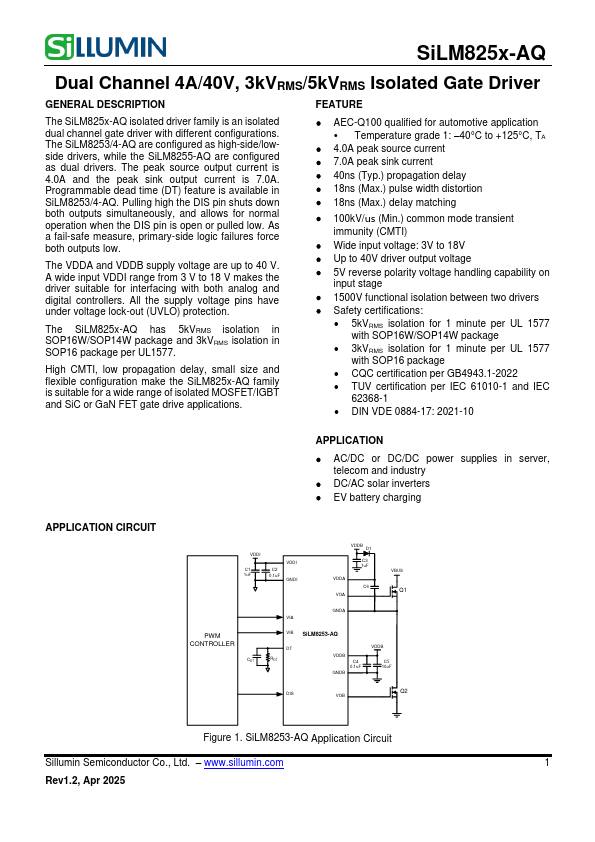

FEATURE The SiLM825x-AQ isolated driver family is an isolated dual channel gate driver with different configurations. The SiLM8253/4-AQ are configured as high-side/lowside drivers, while the SiLM8255-AQ are configured as dual drivers. The peak source output current is 4.0A and the peak sink output current is 7.0A.
| Part Number | Description |
|---|---|
| SiLM8254-AQ | Dual Channel Isolated Gate Driver |
| SiLM8255-AQ | Dual Channel Isolated Gate Driver |
