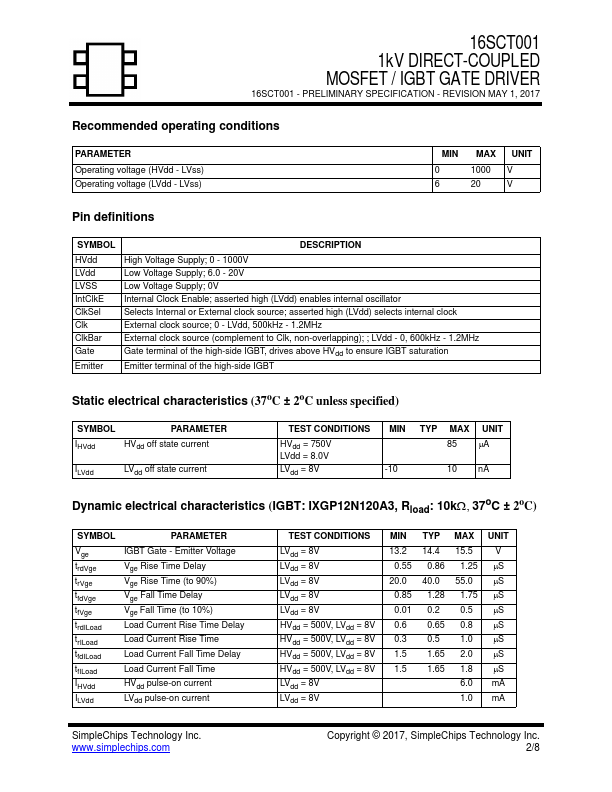

Description The 16SCT001 is a high-voltage (1KV max) direct coupled MOSFET / IGBT gate driver typically used in systems requiring the ability to control the conduction state of a high-voltage (HV) MOSFET / IGBT switch. The chip has built-in circuitry to drive the MOSFET / IGBT gate above the HV supply to ensure that the transistor is adequately saturated. Typical application Absolute maximum ratings High Voltage Power Supply (HVdd - LVss) - - - - - - - . . . . 1100 V Low Voltage Power Supply (LVdd - LVss) - - - - - - - - . 20 V Operating temperature - - - - - - - - - . . -40 C to 100 C Storage temperature- - - - - - - - - . . . . -65 C to 125 C Simple Chips Technology Inc. .simplechips. Copyright © 2017, Simple Chips Technology Inc. 1/8 16SCT001 1k V DIRECT-COUPLED MOSFET / IGBT GATE DRIVER - PRELIMINARY SPECIFICATION - REVISION MAY 1, 2017 Remended operating conditions PARAMETER Operating voltage (HVdd - LVss) Operating voltage (LVdd - LVss) MIN 0 6 MAX 1000 20 UNIT V V Pin definitions SYMBOL DESCRIPTION HVdd LVdd...
