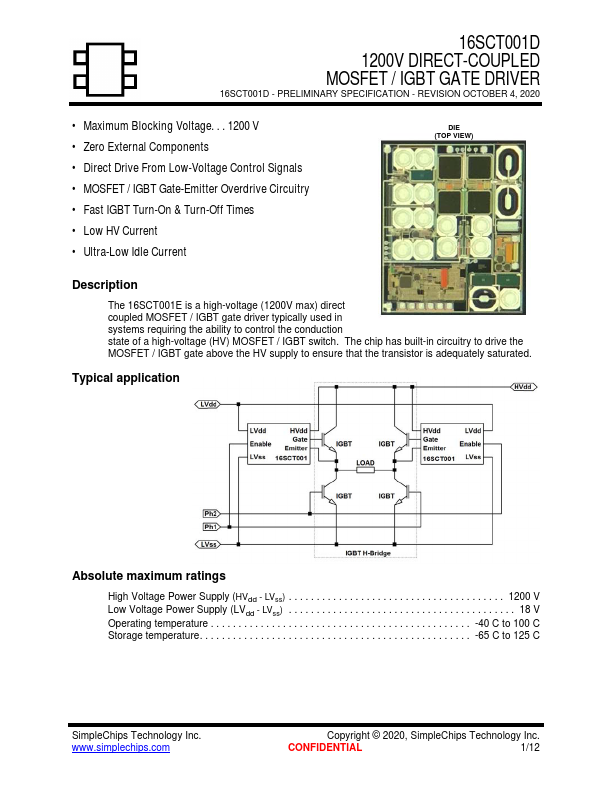

16SCT001D
16SCT001D is MOSFET / IGBT GATE DRIVER manufactured by SimpleChips.
Description
The 16SCT001E is a high-voltage (1200V max) direct coupled MOSFET / IGBT gate driver typically used in systems requiring the ability to control the conduction state of a high-voltage (HV) MOSFET / IGBT switch. The chip has built-in circuitry to drive the MOSFET / IGBT gate above the HV supply to ensure that the transistor is adequately saturated.
Typical application
Absolute maximum ratings
High Voltage Power Supply (HVdd
- LVss)
- -
- -
- -
- . . . . 1200 V Low Voltage Power Supply (LVdd
- LVss)
- -
- -
- -
- - . 18 V Operating temperature
- -
- -
- -
- -
- . . -40 C to 100 C Storage temperature-
- -
- -
- -
- - . . . . -65 C to 125 C
Simple Chips Technology Inc. .simplechips.
Copyright © 2020, Simple Chips Technology Inc.
CONFIDENTIAL
1/12
16SCT001D 1200V DIRECT-COUPLED MOSFET / IGBT GATE DRIVER
- PRELIMINARY SPECIFICATION
- REVISION OCTOBER 4, 2020

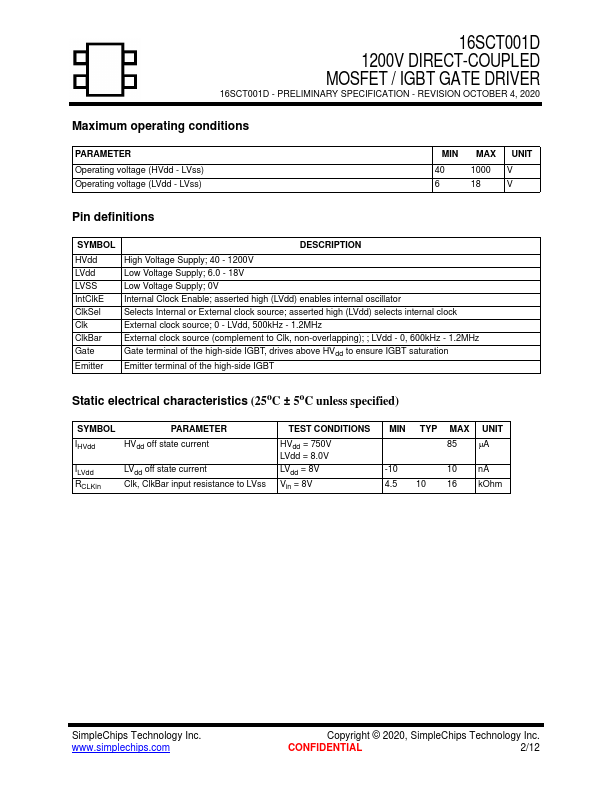

Maximum operating conditions
PARAMETER Operating voltage (HVdd
- LVss) Operating voltage (LVdd
- LVss)
MIN 40 6
MAX 1000 18
UNIT V V
Pin definitions
SYMBOL...
