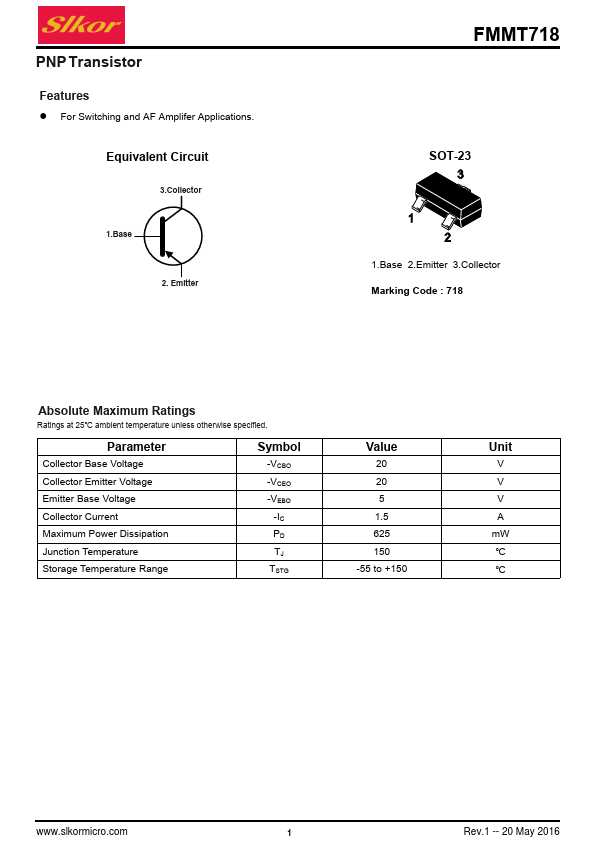

FMMT718
Features
- For Switching and AF Amplifer Applications.
Equivalent Circuit
3.Collector
1.Base
2. Emitter
SOT-23
1.Base 2.Emitter 3.Collector Marking Code : 718
Absolute Maximum Ratings
Ratings at 25℃ ambient temperature unless otherwise specified.
Parameter
Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Maximum Power Dissipation Junction Temperature Storage Temperature Range
Symbol
-VCBO -VCEO -VEBO
-IC PD TJ TSTG
Value
20 20 5 1.5 625 150 -55 to +150
Unit
V V V A m W ℃ ℃
.slkormicro.
Rev.1 -- 20 May 2016

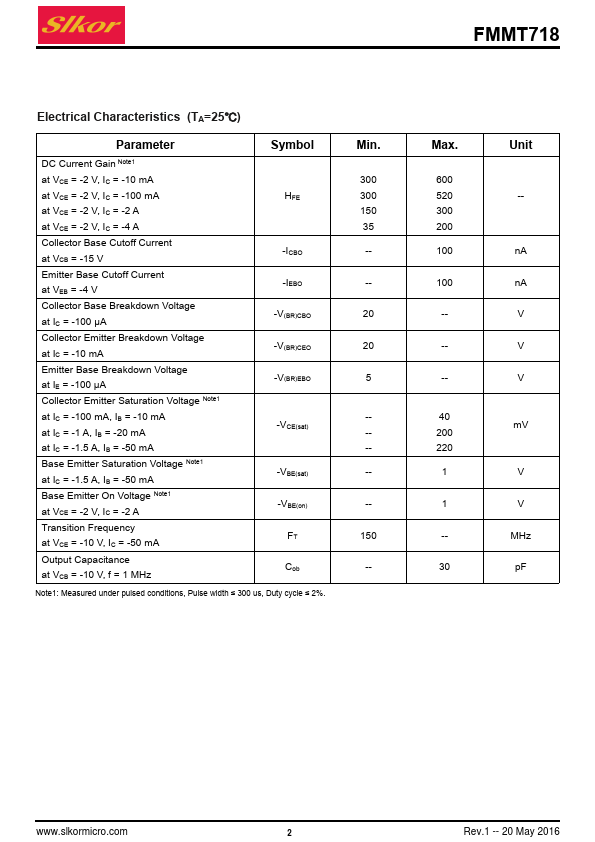

Electrical Characteristics (TA=25℃)
