FMMT718 - PNP SILICON LOW SATURATION TRANSISTOR

Datasheet Summary

Features

  • BVCEO > -20V.
  • IC = -1.5A Continuous Collector Current.
  • ICM = -6A Peak Pulse Current.
  • Low Saturation Voltage VCE(sat) < -200mV @ -1A.
  • RCE(SAT) = 97mΩ for a low equivalent on-resistance.
  • 625mW power dissipation.
  • hFE characterised up to -6A for high current gain hold-up.
  • Complementary NPN Type: FMMT618.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).

📥 Download Datasheet

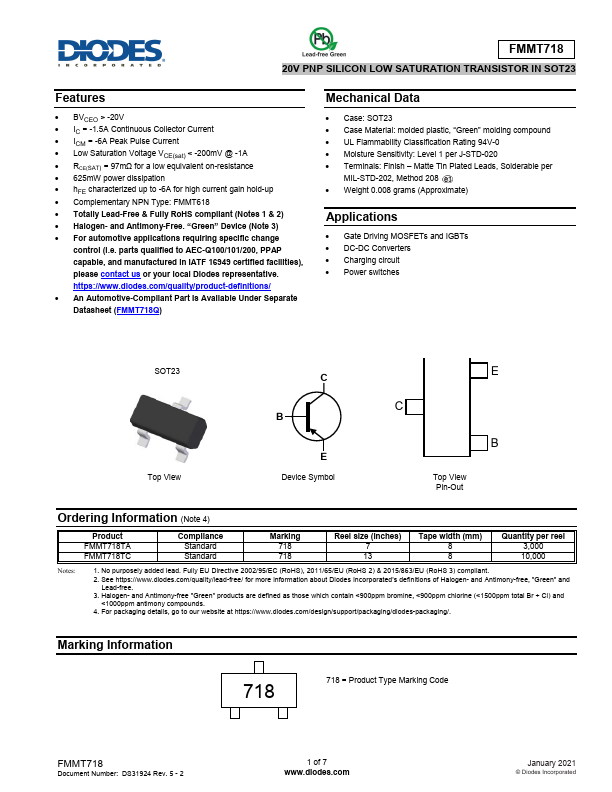

Datasheet preview – FMMT718

Datasheet Details

Part number FMMT718
Manufacturer DIODES
File Size 371.35 KB
Description PNP SILICON LOW SATURATION TRANSISTOR
Datasheet download datasheet FMMT718 Datasheet

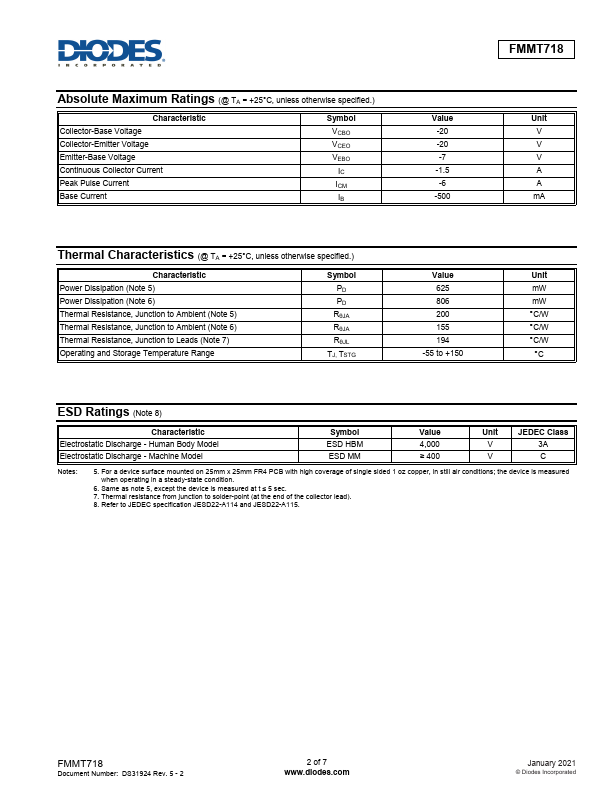

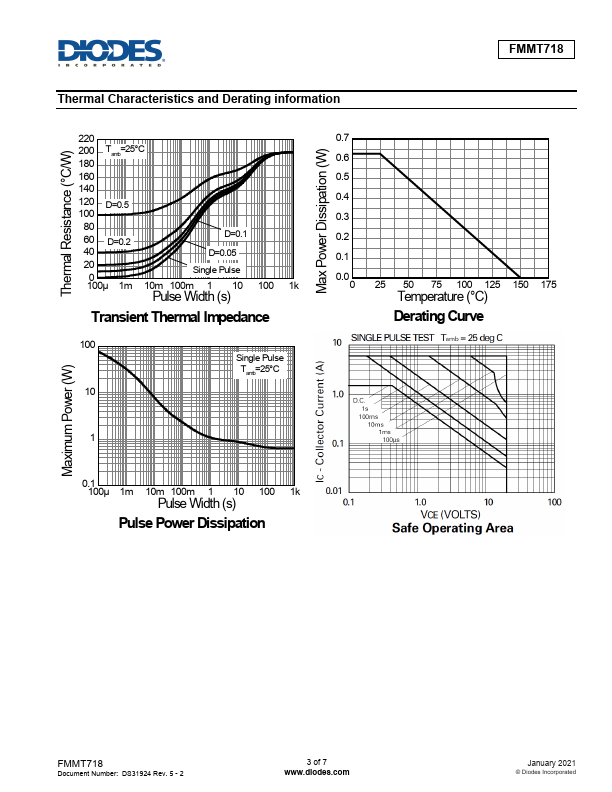

Additional preview pages of the FMMT718 datasheet.

📁 Similar Datasheet

  • FMMT718 - SILICON POWER (SWITCHING) TRANSISTORS (Zetex Semiconductors)
  • FMMT718 - Switching Transistor (Kexin)
  • FMMT717 - Switching Transistor (Kexin)
  • FMMT720 - Switching Transistor (Kexin)
  • FMMT722 - SILICON POWER (SWITCHING) TRANSISTORS (Zetex Semiconductors)
  • FMMT722 - Switching Transistor (Kexin)
  • FMMT723 - SILICON POWER (SWITCHING) TRANSISTORS (Zetex Semiconductors)
  • FMMT723 - Switching Transistor (Kexin)
  • FMMT734 - PNP SILICON POWER DARLINGTON TRANSISTOR (Zetex Semiconductors)
  • FMMT2222A - SOT23 NPN SILICON PLANAR SWITCHING TRANSISTORS (ETC)
Other Datasheets by Diodes
  • FMMT717 - 12V PNP SILICON LOW SATURATION TRANSISTOR
  • FMMT720 - PNP SILICON LOW SATURATION TRANSISTOR
  • FMMT722 - PNP SILICON LOW SATURATION TRANSISTOR
  • FMMT723 - PNP SILICON LOW SATURATION TRANSISTOR
  • FMMT2222 - SOT23 NPN SILICON PLANAR SWITCHING TRANSISTORS
  • FMMT451 - 60V NPN MEDIUM POWER TRANSISTOR
  • FMMT458 - 400V NPN HIGH VOLTAGE TRANSISTOR
  • FMMT459 - 500V NPN HIGH VOLTAGE TRANSISTOR

Full PDF Text Transcription

Click to expand full text
A Product Line of Diodes Incorporated FMMT718 20V PNP SILICON LOW SATURATION TRANSISTOR IN SOT23 Features • BVCEO > -20V • IC = -1.5A Continuous Collector Current • ICM = -6A Peak Pulse Current • Low Saturation Voltage VCE(sat) < -200mV @ -1A • RCE(SAT) = 97mΩ for a low equivalent on-resistance • 625mW power dissipation • hFE characterised up to -6A for high current gain hold-up • Complementary NPN Type: FMMT618 • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free.
