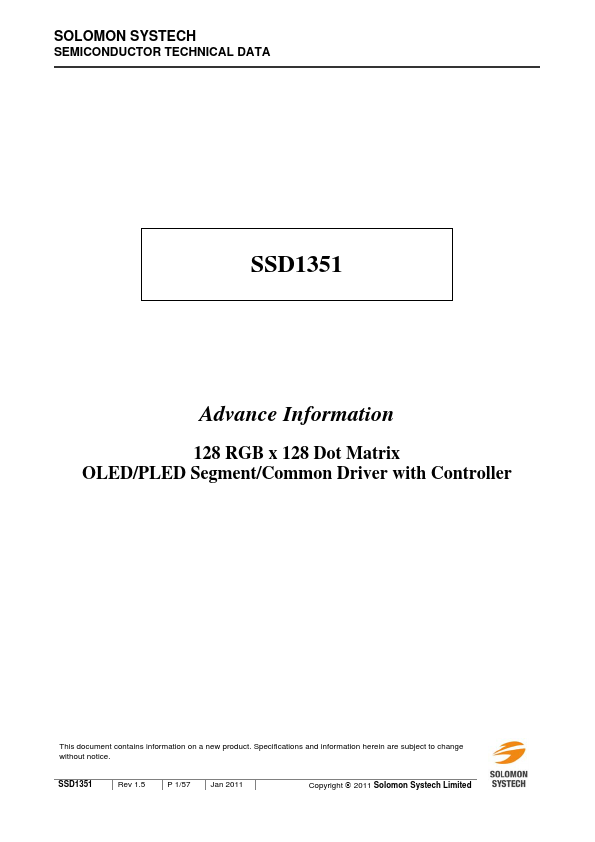

Overview: SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1351 Advance Information 128 RGB x 128 Dot Matrix OLED/PLED Segment/mon Driver with Controller This document contains information on a new product. Specifications and information herein are subject to change without notice. SSD1351 Rev 1.5 P 1/57 Jan 2011 Copyright © 2011 Solomon Systech Limited Appendix: IC Revision history of SSD1351 Specification Version 0.10 1. 1st release Change Items Effective Date 10-Jun-08 1.0 1. Change to Advance Info 2. Revise die thickness tolerance from ±25um to ±15um 3. Revise table 12-1 DC characteristic 4. Revise tables 13 AC characteristic 5. Revise mand table 6. Revise VCC voltage range 1.1 1. Revised section 8.1 MCU interface 12-Dec-08 19-Feb-09 1.2 1 Change “Gold Bump Die” to “COG” for SSD1351Z in Table 3-1 Ordering 31-Aug-09 information 2 Revise typo in Figure 5 1: SSD1351Z Die Drawing ( position of L, T alignment mark) 3 Revise typo in P.45 : 10.1.9 Set Function selection (ABh) 4 Add Note 2 in application example Fig 14-1 1.3 1 Added +/- 0.05mm tolerance for Die Size (after sawing) in Section 5 – P.

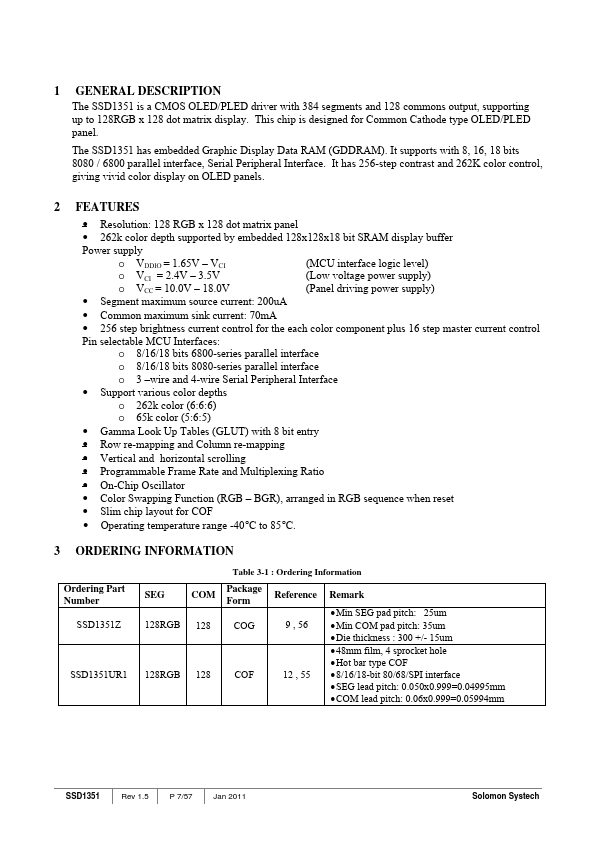

| Part number | SSD1351 |
|---|---|
| Manufacturer | Solomon Systech |
| File Size | 0.95 MB |
| Description | OLED/PLED Segment/Common Driver |
| Datasheet | SSD1351-SolomonSystech.pdf |
|
|
|
of mand FDh – P.37 3 Revised typo error on the description of mand C1h – P.46 4 Updated the ISLP VCI sleep mode current section of Table 12-1 (Max = 50uA when internal VDD is enabled) – P.49 5 Revised declaimer 1.4 1 P.30 Update Power On/OFF sequence 23-Jul-10 2 P.51 Revise Table 13-2 : 6800-Series MCU Parallel Interface Timing Characteristics 3 P.52 Revise Table 13-3 : 8080-Series MCU Parallel Interface Timing Characteristics 4 P.53 Revise Table 13-4 : Serial Interface Timing Characteristics (4-wire SPI) 5 P.54 Revise Table 13-5: Serial Interface Timing Characteristics (3-wire SPI) 1.5 1.
Update the power supply on Section 2 (P.7) and Section 12 (P.48) 02-Feb-11 2.
Updated the pin description of VDD and VCI on Table 7-1 (P.15) 3.
