SSD1353
SSD1353 is OLED/PLED Segment/Common Driver manufactured by Solomon.

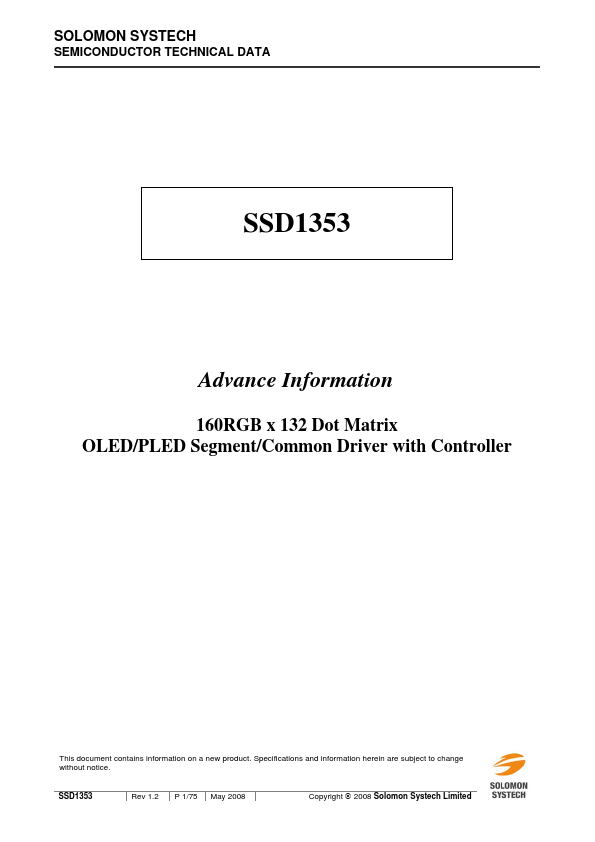

SOLOMON SYSTECH
SEMICONDUCTOR TECHNICAL DATA
Advance Information
160RGB x 132 Dot Matrix OLED/PLED Segment/mon Driver with Controller
This document contains information on a new product. Specifications and information herein are subject to change without notice.
Rev 1.2 P 1/75 May 2008
Copyright © 2008 Solomon Systech Limited

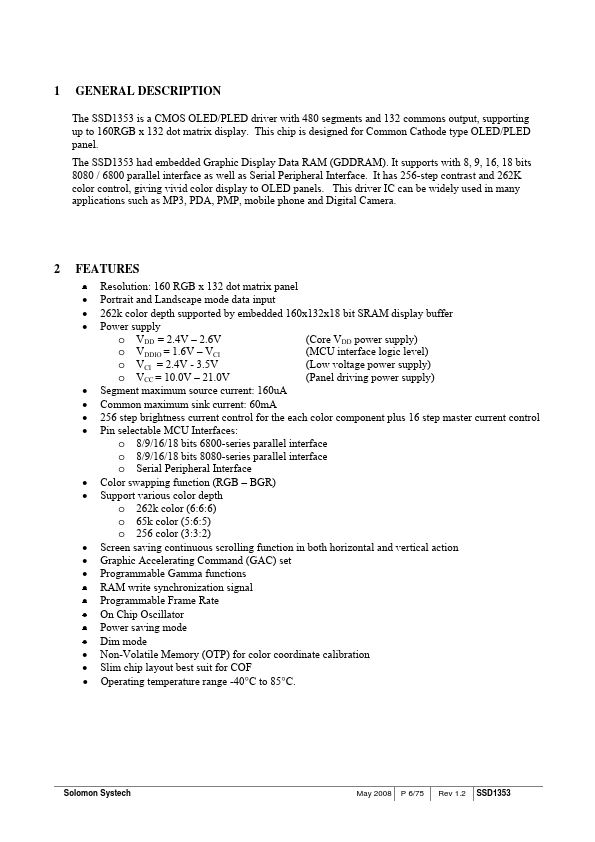

1 GENERAL DESCRIPTION
The SSD1353 is a CMOS OLED/PLED driver with 480 segments and 132 mons output, supporting up to 160RGB x 132 dot matrix display. This chip is designed for mon Cathode type OLED/PLED panel.
The SSD1353 had embedded Graphic Display Data RAM (GDDRAM). It supports with 8, 9, 16, 18 bits 8080 / 6800 parallel interface as...
