SSD1603
SSD1603 is 132 x 64 Bistable Display Driver manufactured by Solomon Systech.

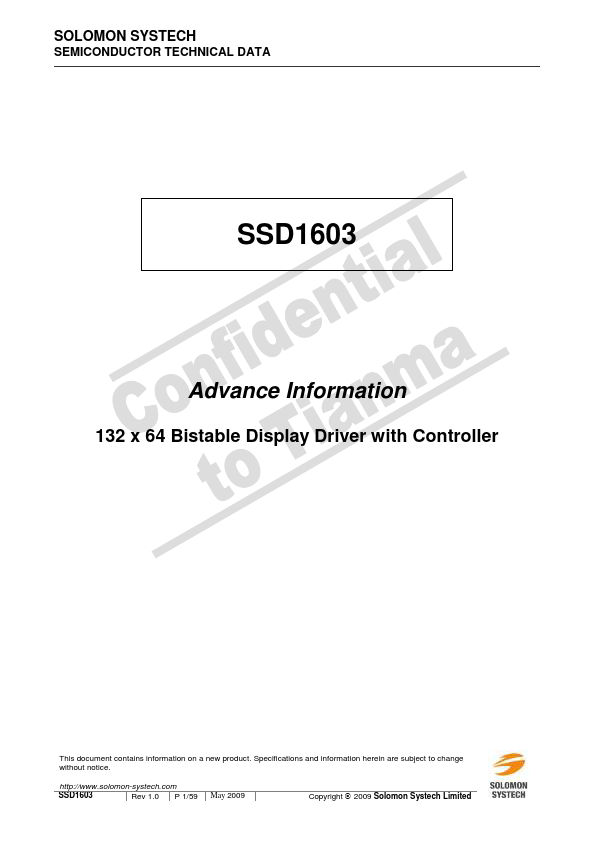

SOLOMON SYSTECH
SEMICONDUCTOR TECHNICAL DATA
Advance Information
132 x 64 Bistable Display Driver with Controller
This document contains information on a new product. Specifications and information herein are subject to change without notice. http://.solomon-systech.
Rev 1.0 P 1/59 May 2009
Copyright 2009 Solomon Systech Limited

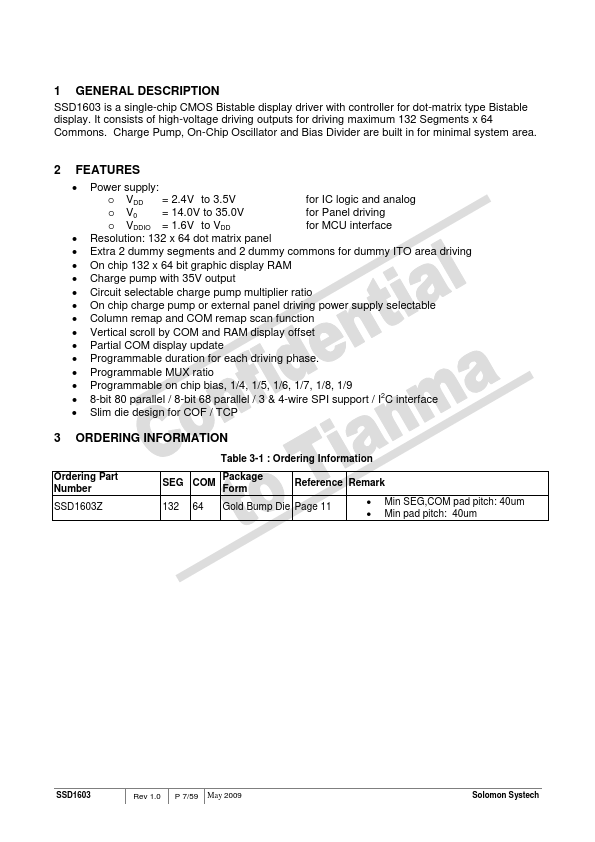

1 GENERAL DESCRIPTION
SSD1603 is a single-chip CMOS Bistable display driver with controller for dot-matrix type Bistable display. It consists of high-voltage driving outputs for driving maximum 132 Segments x 64 mons. Charge Pump, On-Chip Oscillator and Bias Divider are built in for minimal system area.
2 Features
- Power supply: o VDD = 2.4V to 3.5V for IC logic and analog o V0 = 14.0V to 35.0V o VDDIO = 1.6V to VDD for Panel driving for MCU interface
- Resolution: 132 x 64 dot matrix panel
- Extra 2 dummy segments and 2 dummy mons for dummy ITO area driving
- On chip 132 x 64 bit graphic display RAM
- Charge pump with 35V output
- Circuit selectable charge pump multiplier ratio
- On chip charge pump or external panel driving power supply selectable
- Column remap and remap scan function
- Vertical scroll by and RAM display offset
- Partial display update
- Programmable duration for each driving phase.
- Programmable MUX ratio
- Programmable on chip bias, 1/4, 1/5, 1/6, 1/7, 1/8, 1/9
- 8-bit 80 parallel / 8-bit 68 parallel / 3 & 4-wire SPI support / I2C interface
- Slim die design for COF / TCP
3 ORDERING INFORMATION
Ordering Part Number
SSD1603Z
Table 3-1 : Ordering Information
SEG...
