SSD1608
SSD1608 is Active Matrix EPD 240 x 320 Display Driver manufactured by Solomon Systech.
SOLOMON SYSTECH
SEMICONDUCTOR TECHNICAL DATA
Advance Information

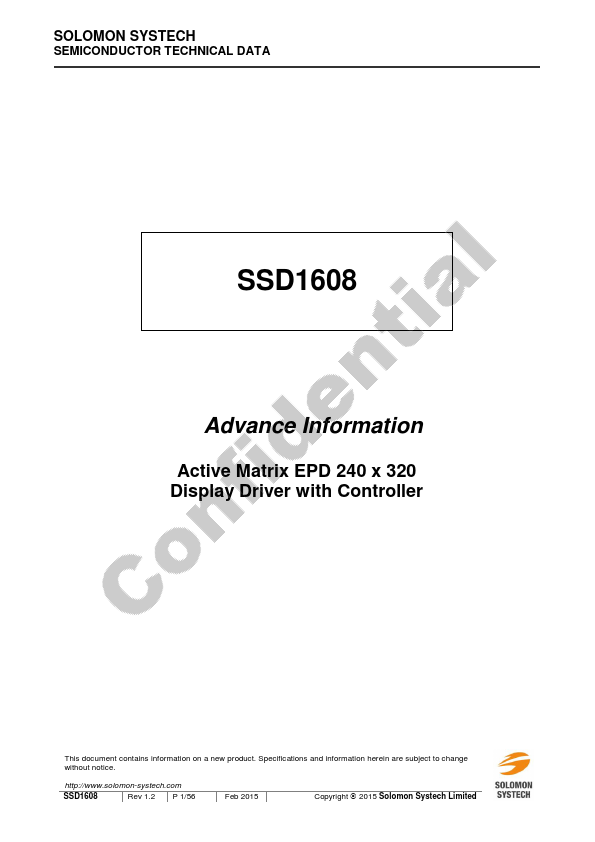

Active Matrix EPD 240 x 320 Display Driver with Controller
This document contains information on a new product. Specifications and information herein are subject to change without notice. http://.solomon-systech.
Rev 1.2 P 1/56
Feb 2015
Copyright 2015 Solomon Systech Limited
1 GENERAL DESCRIPTION

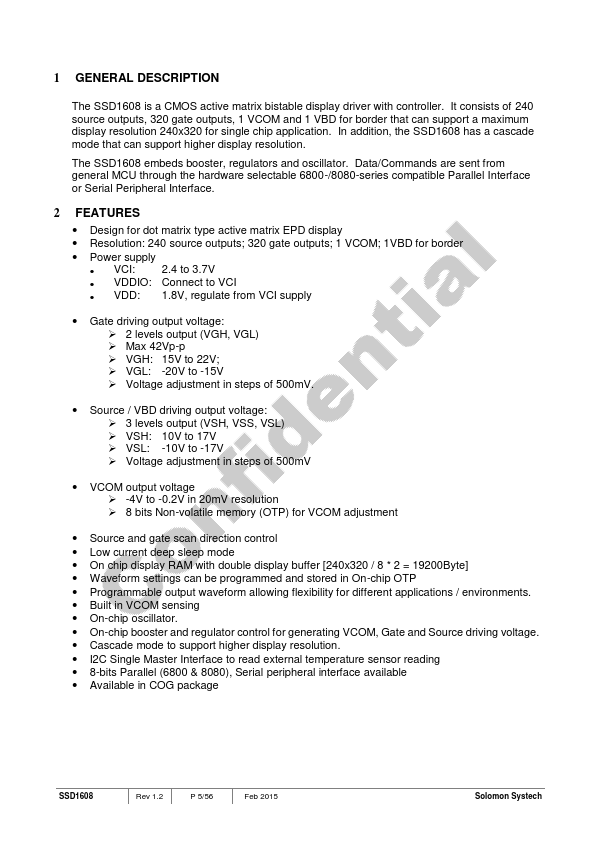

The SSD1608 is a CMOS active matrix bistable display driver with controller. It consists of 240 source outputs, 320 gate outputs, 1 V and 1 VBD for border that can support a maximum display resolution 240x320 for single chip application. In addition, the SSD1608 has a cascade mode that can support higher display resolution.

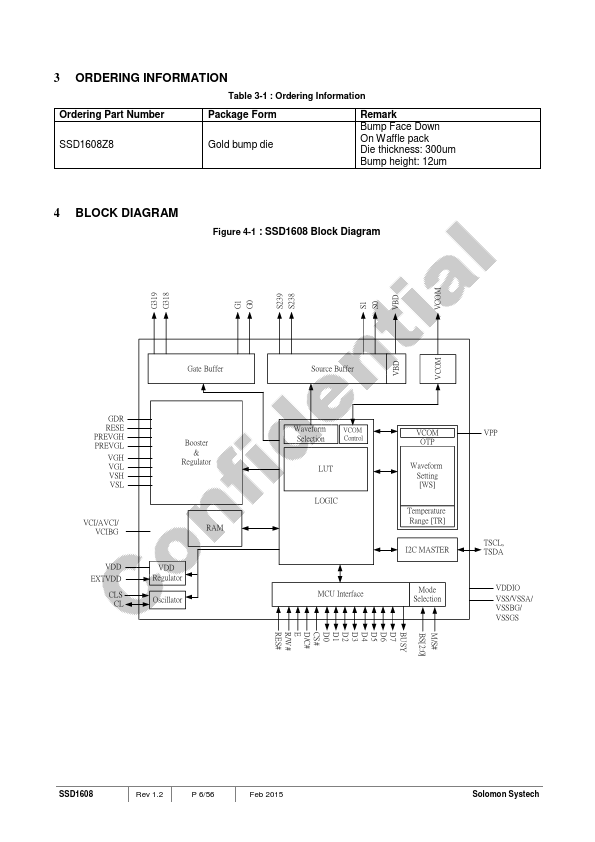

The SSD1608 embeds booster, regulators and oscillator. Data/mands are sent from general MCU through the hardware selectable 6800-/8080-series patible Parallel Interface or Serial Peripheral Interface.
2 Features
- Design for dot matrix type active matrix EPD display
- Resolution: 240 source outputs; 320 gate outputs; 1 V; 1VBD for border
- Power supply
- VCI: 2.4 to 3.7V
- VDDIO: Connect to VCI
- VDD: 1.8V, regulate from VCI supply
- Gate driving output voltage:
- 2 levels output (VGH, VGL)
- Max 42Vp-p
- VGH: 15V to 22V;
- VGL: -20V to -15V
- Voltage adjustment in steps of 500m V.
- Source / VBD driving output voltage:
- 3 levels output (VSH, VSS, VSL)
- VSH: 10V to 17V
- VSL: -10V to -17V
- Voltage adjustment in steps of 500m V
- V output...
