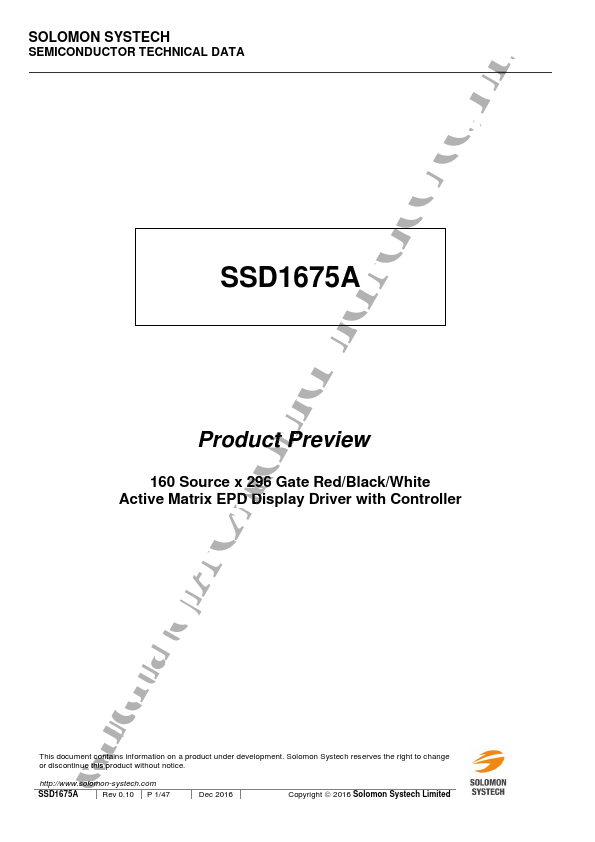

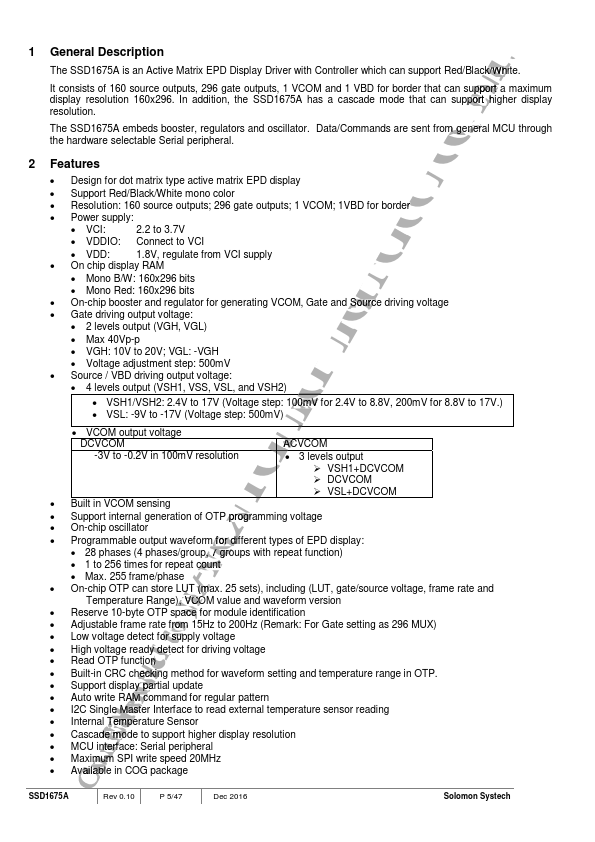

Ό ϕ ϔ όϏϊ ϋ ϔ ϚϏχ ϒ Ϛϕ ΓΒΊ Η ΐ Ρ Β Α Θ Ε ΒΝ Ύ Ό Α Ν Ύ Ό Α Η Θ Ε Θ ΐ ΢ Ό Θ ͨͥ Ε Ν ΍ ͨ SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA Product Preview 160 Source x 296 Gate Red/Black/White Active Matrix EPD Display Driver with Controller This document contains information on a product under development. Solomon Systech reserves the right to change or discontinue this product without notice. http://.solomon-systech. Rev 0.10 P 1/47 Dec 2016 Copyright ¤ 2016 Solomon Systech Limited Ό ϕ ϔ όϏϊ ϋϔ ϚϏχ ϒ Ϛϕ ΓΒΊ Η ΐ Ρ Β Α Θ Ε ΒΝ Ύ Ό Α Ν Ύ Ό Α Η Θ Ε Θ ΐ ΢ Ό Θ ͥ Ε Ν ΍ ͨ 1 General Description The SSD1675A is an Active Matrix EPD Display Driver with Controller which can support Red/Black/White. It consists of 160 source outputs, 296 gate outputs, 1 V and 1 VBD for border that can support a maximum display resolution 160x296. In addition, the SSD1675A has a cascade mode that can support higher display resolution. The SSD1675A embeds booster, regulators and oscillator. Data/mands are sent from general MCU through the hardware selectable Serial peripheral. 2 Features x Design for dot matrix type active matrix EPD display x Support Red/Black/White mono color x Resolution: 160 source outputs; 296 gate outputs; 1 V; 1VBD for border x Power supply: x VCI: 2.2 to 3.7V x VDDIO: Connect to VCI x VDD: 1.8V, regulate from VCI supply x On chip display RAM x Mono B/W: 160x296 bits x Mono Red: 160x296 bits x On-chip booster and regulator for generating V, Gate and Source driving voltage x Gate driving output voltage: x 2 levels output (VGH, VGL) x Max 40Vp-p x VGH: 10V to 20V; VGL: -VGH x Voltage adjustment step: 500m V x Source / VBD driving output voltage: x 4 levels output (VSH1, VSS, VSL, and VSH2) x VSH1/VSH2: 2.4V to 17V (Voltage step: 100m V for 2.4V to 8.8V, 200m V for 8.8V to 17V.) x VSL: -9V to -17V (Voltage step: 500m V) x V output voltage -3V to -0.2V in 100m V resolution x 3 levels output ¾...
