SSD1675
SSD1675 is Red/Black/White Active Matrix EPD Display Driver manufactured by Solomon Systech.
SOLOMON SYSTECH
SEMICONDUCTOR TECHNICAL DATA

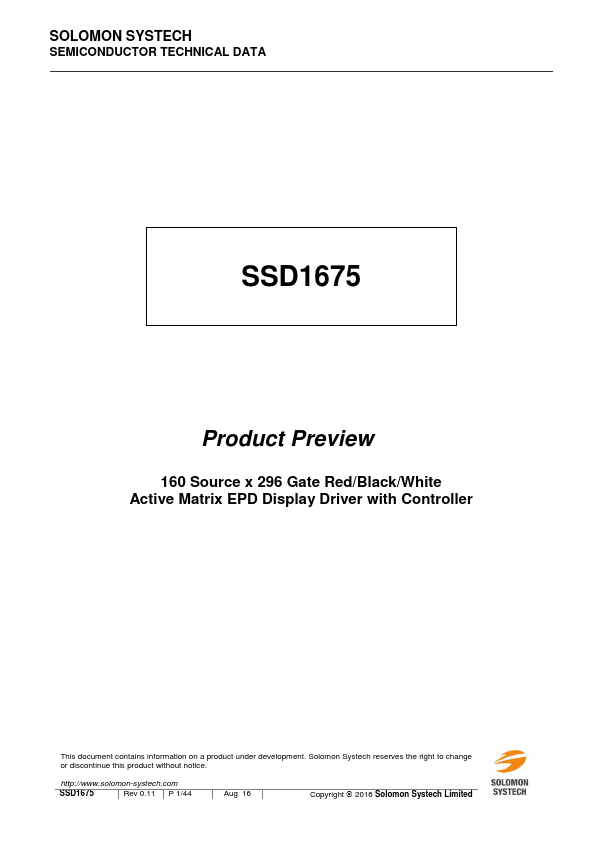

Product Preview
160 Source x 296 Gate Red/Black/White Active Matrix EPD Display Driver with Controller
This document contains information on a product under development. Solomon Systech reserves the right to change or discontinue this product without notice. http://.solomon-systech.
Rev 0.11 P 1/44
Aug 16
Copyright 2016 Solomon Systech Limited
1 General Description
The SSD1675 is an Active Matrix EPD Display Driver with Controller which can support Red/Black/White.
It consists of 160 source outputs, 296 gate outputs, 1 V and 1 VBD for border that can support a maximum display resolution 160x296. In addition, the SSD1675 has a cascade mode that can support higher display resolution.
The SSD1675 embeds booster, regulators and oscillator. Data/mands are sent from general MCU through the hardware selectable Serial peripheral.
2 Features
- Design for dot matrix type active matrix EPD display
- Support Red/Black/White mono color
- Resolution: 160 source outputs; 296 gate outputs; 1 V; 1VBD for border
- Power supply:
- VCI:
2.2 to 3.7V
- VDDIO: Connect to VCI
- VDD:
1.8V, regulate from VCI supply
- On chip display RAM
- Mono B/W: 160x296 bits
- Mono Red: 160x296 bits
- On-chip booster and regulator for generating V, Gate and Source driving voltage
- Gate driving output voltage:
- 2 levels output (VGH, VGL)
- Max 42Vp-p
- VGH: 10V to 21V; VGL:...
