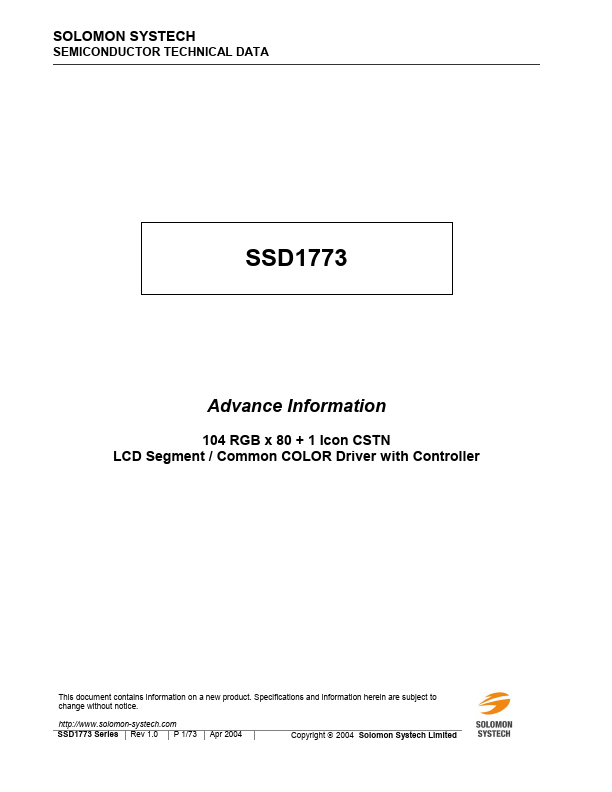

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA Advance Information 104 RGB x 80 + 1 Icon CSTN LCD Segment / mon COLOR Driver with Controller This document contains information on a new product. Specifications and information herein are subject to change without notice. http://.solomon-systech. SSD1773 Series Rev 1.0 P 1/73 Apr 2004 Copyright  2004 Solomon Systech Limited 1 General Description SSD1773 is a single-chip CMOS color STN LCD driver with controller for dot-matrix graphic liquid crystal display system. SSD1773 consists of 393 high voltage driving output pins for driving maximum 104 RGB Segments, 81 mons CSTN panel. SSD1773 consists of 104 RGB x 81 x 16 bits Graphic Display Data RAM (GDDRAM). Data/mands are sent from mon MCU through 8-bit 6800-series / 8080-series patible Parallel Interface or 3-wires / 4wires Serial Peripheral Interface by pins selection. SSD1773 embeds On-Chip Oscillator, DC-DC Converter, bias divider so as to reduce the number of external ponent. With the advanced design, low power consumption, stable LCD operating voltage and flexible die package layout, SSD1773 is suitable for any portable battery-driven applications requiring long operation period with pact size. 2 Features - Power Supply: VDDIO = 2.4V - VDD VDD = 2.4V - 3.6V VCI = VDD - 3.6V - LCD Driving Output Voltage: 13.5V max - Low Current Sleep Mode - Maximum display size: 104 RGB columns by 80 rows + icon. - Display color support: 65K/4K/256 color selectable, with selectable gamma correction. - 8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface, 3-wires Serial Peripheral Interface and 4-wires Serial Peripheral Interface - On-Chip (104 RGB) X 81 x 16 = 134,784 bits Graphic Display Data RAM - Programmable partial display function - Column Re-mapping and RAM Page scan direction control - Software selection on Center Screen Scrolling, Top Screen Scrolling, Bottom Screen Scrolling and Whole Screen Scrolling - On-Chip...
