SSD1803A - LCD Segment / Common Mono Driver

Description

Effective Date 17-Aug-10 17-Jun-11 Solomon Systech May 2011 P 2/69 Rev 2.0 SSD1803A CONTENTS 1 GENERAL DESCRIPTION 7 2

Features

  • 7 3.

📥 Download Datasheet

Datasheet preview – SSD1803A

Datasheet Details

Part number SSD1803A
Manufacturer Solomon Systech
File Size 924.06 KB
Description LCD Segment / Common Mono Driver
Datasheet download datasheet SSD1803A Datasheet
Additional preview pages of the SSD1803A datasheet.

📁 Similar Datasheet

  • SSD103 - Surface-mount Power Transistor (ETC)
  • SSD1030P - P-Channel Enhancement Mode MOSFET (South Sea Semiconductor)
  • SSD10N10J-C - N-Ch Enhancement Mode Power MOSFET (SeCoS)
  • SSD125N03S-C - N-Channel Fast Switching MOSFET (SeCoS)
  • SSD12P10 - P-Channel Enhancement Mode Power MosFET (SeCoS)
  • SSD12P10-C - P-Ch Enhancement Mode Power MOSFET (SeCoS)
  • SSD1303 - 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver (Solomon)
  • SSD1327 - OLED/PLED Segment/Common Driver (Solomon)
  • SSD1332 - OLED/PLED Segment/Common Driver (Solomon)
  • SSD1353 - OLED/PLED Segment/Common Driver (Solomon)
Other Datasheets by Solomon Systech
  • SSD1800 - LCD Segment / Common Driver
  • SSD1801 - LCD Segment / Common Driver
  • SSD1805 - 132 x 68 STN LCD Segment / Common Monochrome Driver
  • SSD1809 - LCD SEGMENT / COMMON DRIVER
  • SSD1811 - LCD Segment / Common Driver
  • SSD1812 - LCD Segment / Common Driver
  • SSD1813 - LCD Segment / Common Driver
  • SSD1815 - LCD Segment / Common Driver

Full PDF Text Transcription

Click to expand full text

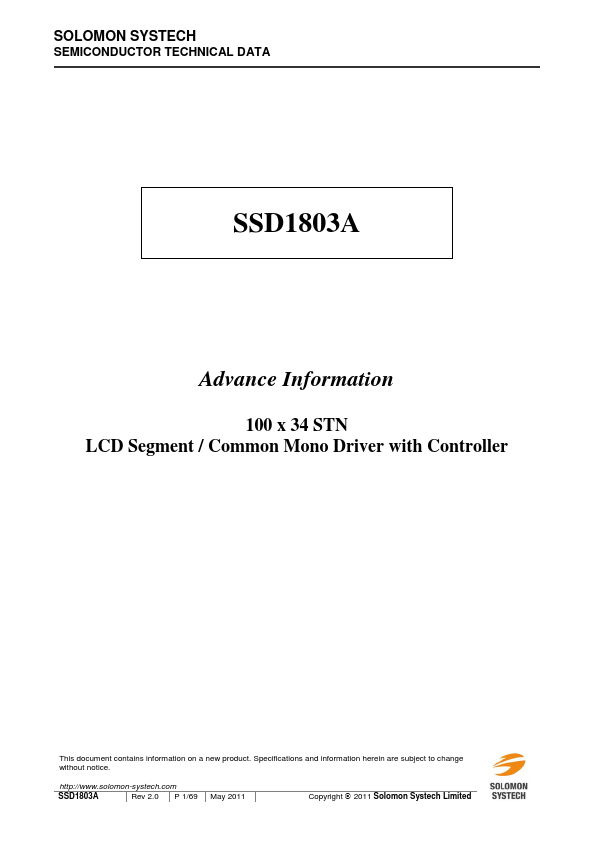

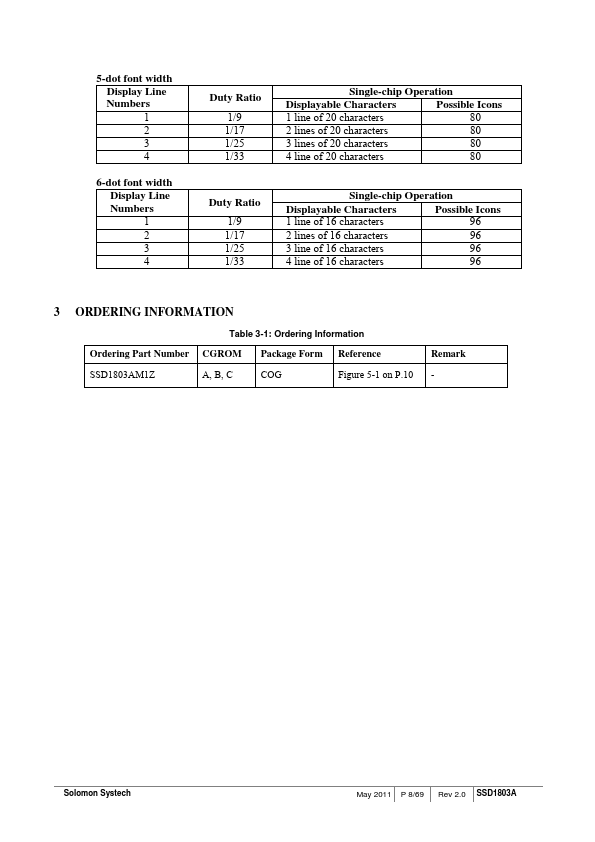

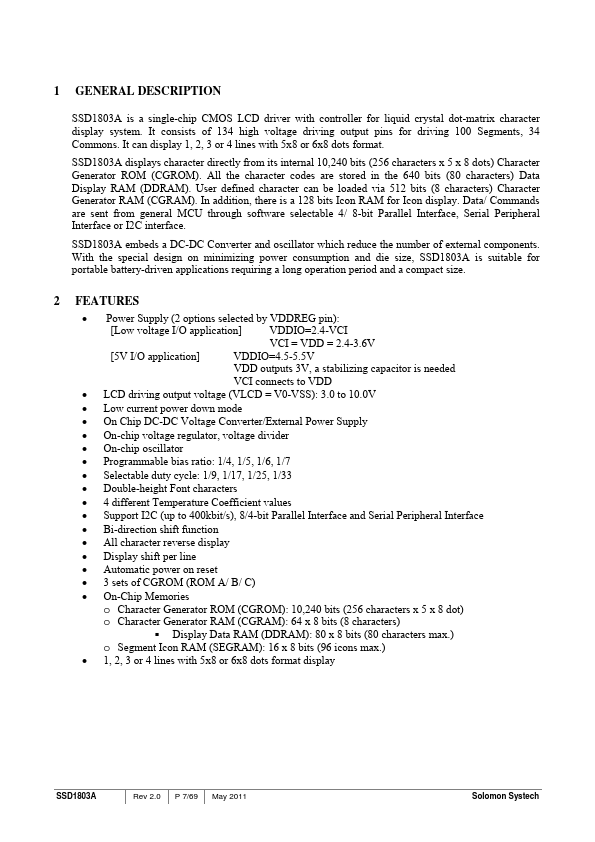

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1803A Advance Information 100 x 34 STN LCD Segment / Common Mono Driver with Controller This document contains information on a new product. Specifications and information herein are subject to change without notice. http://www.solomon-systech.com SSD1803A Rev 2.0 P 1/69 May 2011 Copyright © 2011 Solomon Systech Limited Appendix: IC Revision history of SSD1803A Specification Version 1.0 1st Release Change Items 2.0 P.40 Added ROM selection command P.50 Added ROM selection command description Effective Date 17-Aug-10 17-Jun-11 Solomon Systech May 2011 P 2/69 Rev 2.0 SSD1803A CONTENTS 1 GENERAL DESCRIPTION ....................................................................................................... 7 2 FEATURES.......
