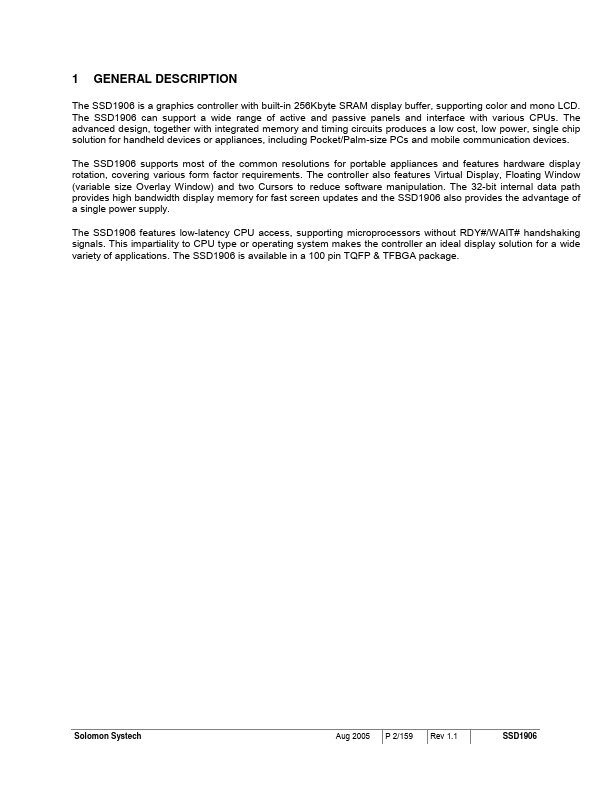

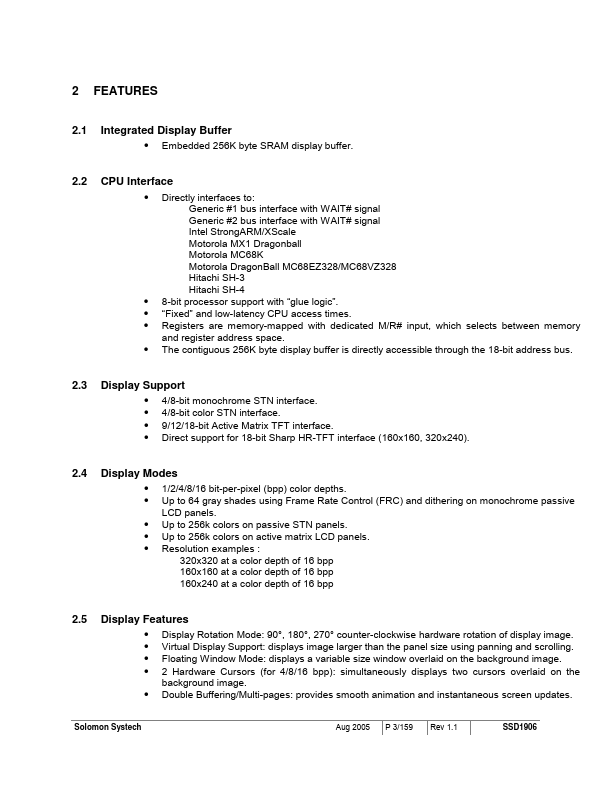

DESCRIPTION The SSD1906 is a graphics controller with built-in 256Kbyte SRAM display buffer, supporting color and mono LCD. The SSD1906 can support a wide range of active and passive panels and interface with various CPUs. The advanced design, together with integrated memory and timing circuits produces a low cost, low power, single chip solution for handheld devices or appliances, including Pocket/Palm-size PCs and mobile munication devices. The SSD1906 supports most of the mon resolutions for portable appliances and features hardware display rotation, covering various form factor requirements. The controller also features Virtual Display, Floating Window (variable size Overlay Window) and two Cursors to reduce software manipulation. The 32-bit internal data path provides high bandwidth display memory for fast screen updates and the SSD1906 also provides the advantage of a single power supply. The SSD1906 features low-latency CPU access, supporting microprocessors without RDY#/WAIT# handshaking signals. This impartiality to CPU type or operating system makes the controller an ideal display solution for a wide variety of applications. The SSD1906 is available in a 100 pin TQFP & TFBGA package. Solomon Systech Aug 2005 P 2/159 Rev 1.1 2 FEATURES 2.1 Integrated Display Buffer - Embedded 256K byte SRAM display buffer. 2.2 CPU Interface - Directly interfaces to: Generic #1 bus interface with WAIT# signal Generic #2 bus interface with WAIT# signal Intel Strong ARM/XScale Motorola MX1 Dragonball Motorola MC68K Motorola Dragon Ball MC68EZ328/MC68VZ328 Hitachi SH-3 Hitachi SH-4 - 8-bit processor support with “glue logic”. - “Fixed” and low-latency CPU access times. - Registers are memory-mapped with dedicated M/R# input, which selects between memory and register address space. - The contiguous 256K byte display buffer is directly accessible through the 18-bit address bus. 2.3 Display Support - 4/8-bit monochrome STN interface. - 4/8-bit color STN interface. -...
