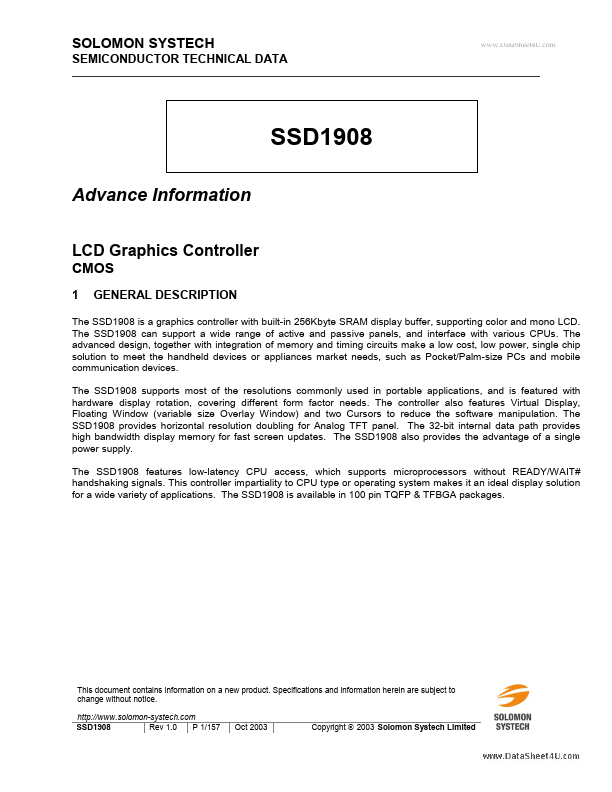

DESCRIPTION The SSD1908 is a graphics controller with built-in 256Kbyte SRAM display buffer, supporting color and mono LCD. The SSD1908 can support a wide range of active and passive panels, and interface with various CPUs. The advanced design, together with integration of memory and timing circuits make a low cost, low power, single chip solution to meet the handheld devices or appliances market needs, such as Pocket/Palm-size PCs and mobile munication devices. The SSD1908 supports most of the resolutions monly used in portable applications, and is featured with hardware display rotation, covering different form factor needs. The controller also features Virtual Display, Floating Window (variable size Overlay Window) and two Cursors to reduce the software manipulation. The SSD1908 provides horizontal resolution doubling for Analog TFT panel. The 32-bit internal data path provides high bandwidth display memory for fast screen updates. The SSD1908 also provides the advantage of a single power supply. The SSD1908 features low-latency CPU access, which supports microprocessors without READY/WAIT# handshaking signals. This controller impartiality to CPU type or operating system makes it an ideal display solution for a wide variety of applications. The SSD1908 is available in 100 pin TQFP & TFBGA packages. This document contains information on a new product. Specifications and information herein are subject to change without notice. http://.solomon-systech. Rev 1.0 P 1/157 Oct 2003 Copyright  2003 Solomon Systech Limited .. 2 FEATURES 2.1 Integrated Display Buffer - Embedded 256K byte SRAM display buffer. 2.2 CPU Interface - Directly interfaces to : Generic #1 bus interface with WAIT# signal Generic #2 bus interface with WAIT# signal Intel Strong ARM / XScale Motorola MX1 Dragonball Motorola MC68K Motorola MC68EZ328/MC68VZ328 Dragon Ball Hitachi SH-3 Hitachi SH-4 - 8-bit processor support with “glue logic”. - “Fixed” and low-latency CPU access times. -...
