SSD1730 Overview

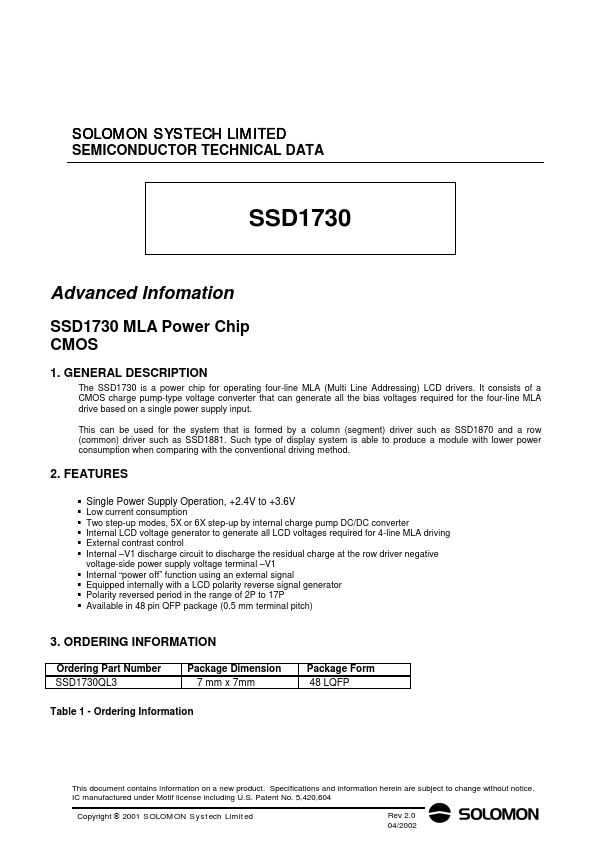

Description
The SSD1730 is a power chip for operating four-line MLA (Multi Line Addressing) LCD drivers. It consists of a CMOS charge pump-type voltage converter that can generate all the bias voltages required for the four-line MLA drive based on a single power supply input.
Key Features
- Single Power Supply Operation, +2.4V to +3.6V !
- Low current consumption !
- Two step-up modes, 5X or 6X step-up by internal charge pump DC/DC converter !
- Internal LCD voltage generator to generate all LCD voltages required for 4-line MLA driving !
- External contrast control !
