ICM-20689 - High Performance 6-Axis MEMS MotionTracking Device

General Description

The ICM-20689 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMP) in a small 4x4x0.9mm (24pin QFN) package.

Large 4K-byte FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing

Key Features

  • an operating voltage range down to 1.71 V. Communication ports include I2C and high speed SPI at 8 MHz.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICM-20600 High Performance 6-Axis MEMS MotionTracking InvenSense
ICM-20601 Wide-Range 6-Axis MotionTracking InvenSense
ICM-20602 High Performance 6-Axis MEMS MotionTracking InvenSense
ICM-20608 A 6-axis MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer InvenSense
ICM-20608-G A 6-axis MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer InvenSense

Other Datasheets by TDK Corporation

Part Number Description
ICM-20602 High Performance 6-Axis MEMS MotionTracking
ICM-20648 6-Axis MEMS MotionTracking Device
ICM-20789 High Performance Integrated 6-Axis Inertial and Barometric Pressure Sensor
ICM-40627 High Performance 6-Axis MotionTracking IMU
ICM-42605 Premium Performance 6-Axis MotionTracking IMU

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

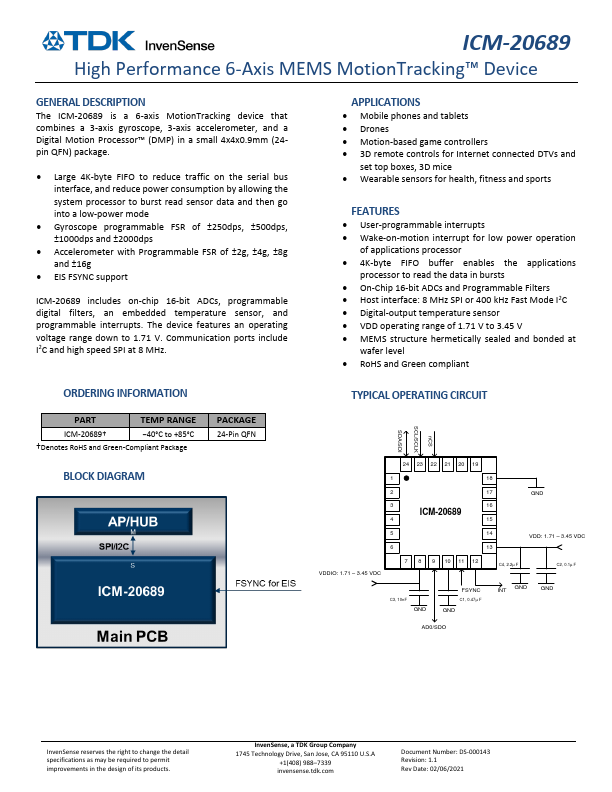

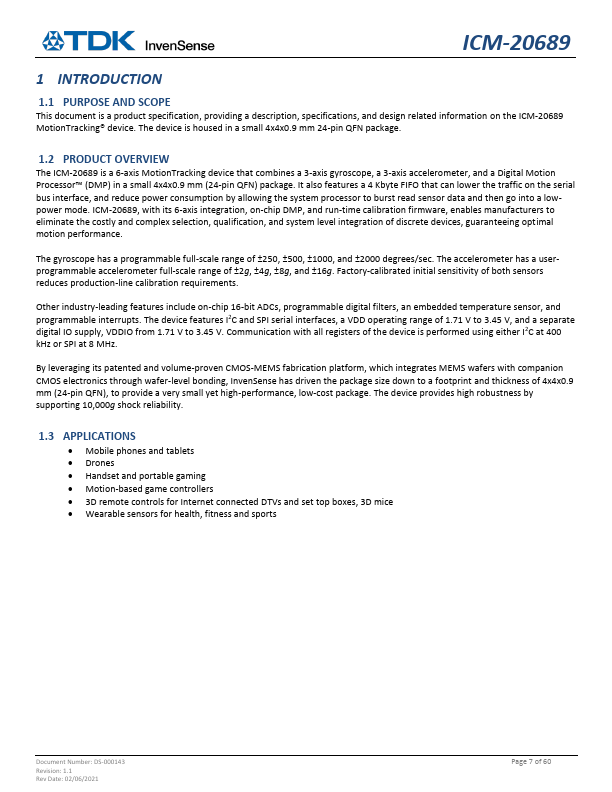

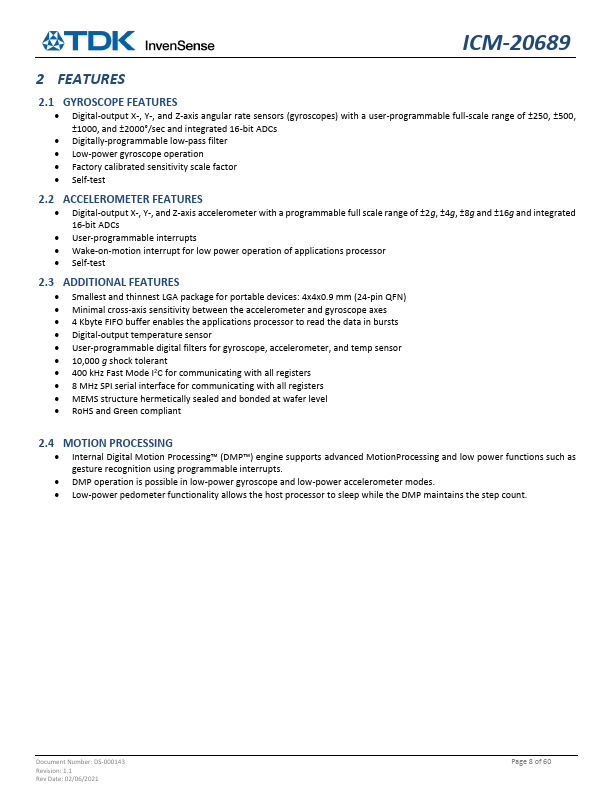

ICM-20689 High Performance 6-Axis MEMS MotionTracking™ Device GENERAL DESCRIPTION The ICM-20689 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor™ (DMP) in a small 4x4x0.9mm (24pin QFN) package. • Large 4K-byte FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode • Gyroscope programmable FSR of ±250dps, ±500dps, ±1000dps and ±2000dps • Accelerometer with Programmable FSR of ±2g, ±4g, ±8g and ±16g • EIS FSYNC support ICM-20689 includes on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts.
