Overview

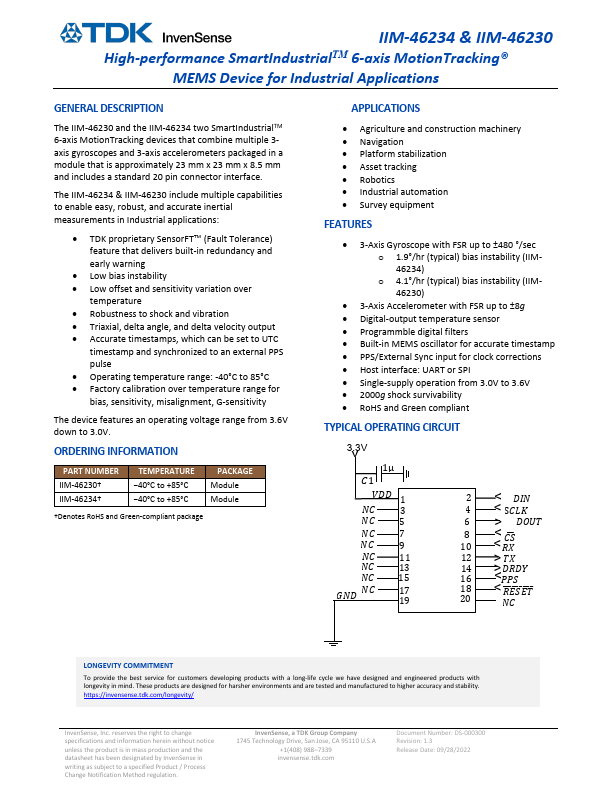

The IIM-46230 and the IIM-46234 two SmartIndustrialTM 6-axis MotionTracking devices that combine multiple 3axis gyroscopes and 3-axis accelerometers packaged in a module that is approximately 23 mm x 23 mm x 8.5 mm and includes a standard 20 pin connector interface. The IIM-46234 & IIM-46230 include multiple capabilities to enable easy, robust, and accurate inertial measurements in Industrial applications: TDK proprietary SensorFT™ (Fault Tolerance) feature that delivers built-in redundancy and early warning Low bias instability Low offset and sensitivity variation over temperature Robustness to shock and vibration Triaxial, delta angle, and delta velocity output Accurate timestamps, which can be set to UTC timestamp and synchronized to an external PPS pulse Operating temperature range: -40°C to 85°C Factory calibration over temperature range for bias, sensitivity, misalignment, G-sensitivity The device features an operating voltage range from 3.6V down to 3.0V.
- Low bias instability
- Low offset and sensitivity variation over temperature
- Robustness to shock and vibration
- Triaxial, delta angle, and delta velocity output
- Accurate timestamps, which can be set to UTC timestamp and synchronized to an external PPS pulse
- Operating temperature range: -40°C to 85°C
- Factory calibration over temperature range for bias, sensitivity, misalignment, G-sensitivity The device features an operating voltage range from 3.6V down to 3.0V.
