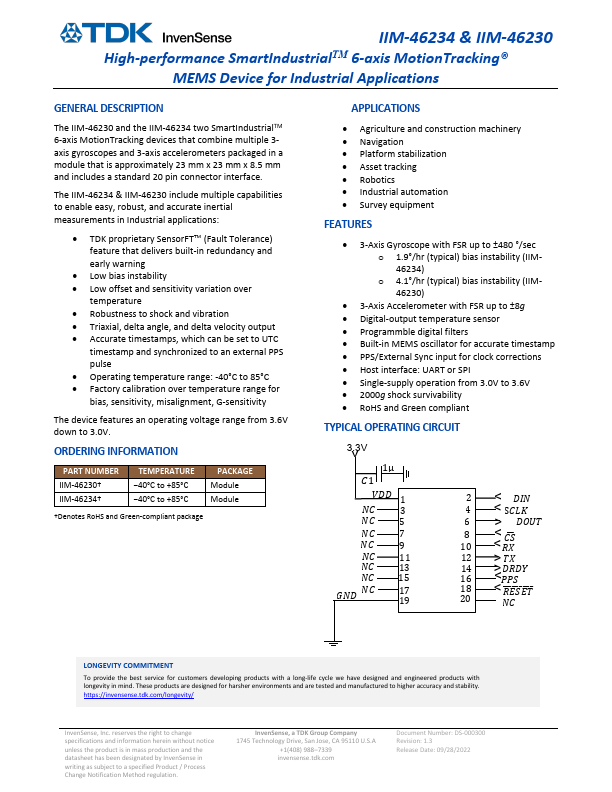

IIM-46234 & IIM-46230 High-performance SmartIndustrialTM 6-axis MotionTracking® MEMS Device for Industrial Applications GENERAL DESCRIPTION The IIM-46230 and the IIM-46234 two SmartIndustrialTM 6-axis MotionTracking devices that bine multiple 3axis gyroscopes and 3-axis accelerometers packaged in a module that is approximately 23 mm x 23 mm x 8.5 mm and includes a standard 20 pin connector interface. The IIM-46234 & IIM-46230 include multiple capabilities to enable easy, robust, and accurate inertial measurements in Industrial applications: - TDK proprietary SensorFT™ (Fault Tolerance) feature that delivers built-in redundancy and early warning - Low bias instability - Low offset and...
