T5837 - Bottom Port PDM Digital Output Multi-Mode Microphone

General Description

The T5837 is a multi-mode, low noise digital MEMS microphone in a small package.

The T5837 consists of a MEMS microphone element and an impedance converter amplifier followed by a Σ-Δ modulator.

Key Features

  • LOW-POWER MODE.
  • 21 dB FS ±1 dB 65.5 dBA 120 µA 117 dB SPL 400 kHz to 800 kHz.

📥 Download Datasheet

Datasheet Details

Part number T5837
Manufacturer TDK Corporation
File Size 791.82 KB
Description Bottom Port PDM Digital Output Multi-Mode Microphone
Datasheet download datasheet T5837 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
T588N Thyristor SCR MODULE Eupec Power Semiconductors
T588N14TOC Thyristor SCR MODULE Eupec Power Semiconductors
T588N14TOF Thyristor SCR MODULE Eupec Power Semiconductors
T589N Thyristor SCR MODULE Eupec Power Semiconductors

Other Datasheets by TDK Corporation

Part Number Description
T5838 Bottom Port PDM Digital Output Multi-Mode Microphone
T5818 Bottom Port PDM Digital Output Multi-Mode Microphone
T5848 Bottom Port I2S Digital Output Multi-Mode Microphone

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

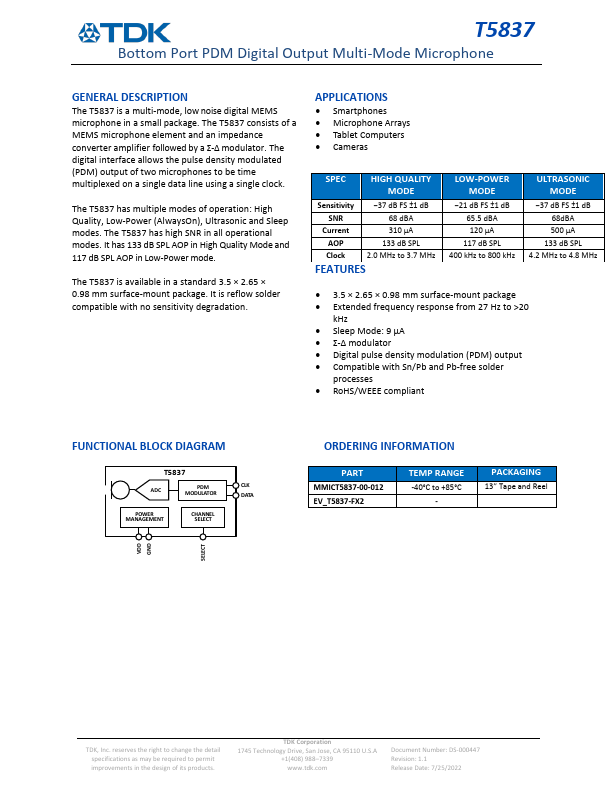

T5837 Bottom Port PDM Digital Output Multi-Mode Microphone GENERAL DESCRIPTION The T5837 is a multi-mode, low noise digital MEMS microphone in a small package. The T5837 consists of a MEMS microphone element and an impedance converter amplifier followed by a Σ-Δ modulator. The digital interface allows the pulse density modulated (PDM) output of two microphones to be time multiplexed on a single data line using a single clock. The T5837 has multiple modes of operation: High Quality, Low-Power (AlwaysOn), Ultrasonic and Sleep modes. The T5837 has high SNR in all operational modes. It has 133 dB SPL AOP in High Quality Mode and 117 dB SPL AOP in Low-Power mode. The T5837 is available in a standard 3.5 × 2.65 × 0.98 mm surface-mount package.
