T5838 - Bottom Port PDM Digital Output Multi-Mode Microphone

Description

The T5838 is a multi-mode, low noise digital MEMS microphone in a small package.

The T5838 consists of a MEMS microphone element and an impedance converter amplifier followed by a fifth order Σ-Δ modulator.

Features

  • SPEC HIGH.

📥 Download Datasheet

Datasheet preview – T5838

Datasheet Details

Part number T5838
Manufacturer TDK
File Size 1.06 MB
Description Bottom Port PDM Digital Output Multi-Mode Microphone
Datasheet download datasheet T5838 Datasheet
Additional preview pages of the T5838 datasheet.

📁 Similar Datasheet

  • T588N - Thyristor SCR MODULE (Eupec Power Semiconductors)
  • T588N14TOC - Thyristor SCR MODULE (Eupec Power Semiconductors)
  • T588N14TOF - Thyristor SCR MODULE (Eupec Power Semiconductors)
  • T589N - Thyristor SCR MODULE (Eupec Power Semiconductors)
Other Datasheets by TDK
  • T5837 - Bottom Port PDM Digital Output Multi-Mode Microphone
  • T5818 - Bottom Port PDM Digital Output Multi-Mode Microphone
  • T5848 - Bottom Port I2S Digital Output Multi-Mode Microphone

Full PDF Text Transcription

Click to expand full text

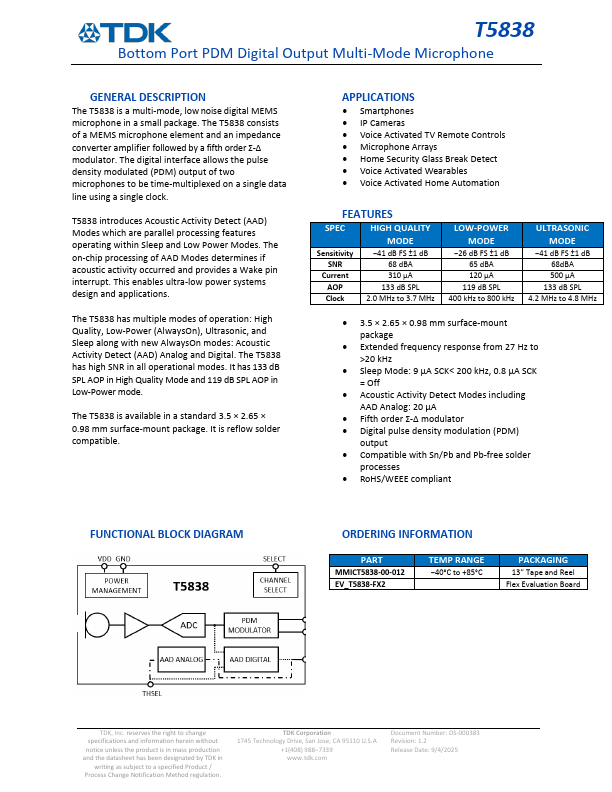

T5838 Bottom Port PDM Digital Output Multi-Mode Microphone GENERAL DESCRIPTION The T5838 is a multi-mode, low noise digital MEMS microphone in a small package. The T5838 consists of a MEMS microphone element and an impedance converter amplifier followed by a fifth order Σ-Δ modulator. The digital interface allows the pulse density modulated (PDM) output of two microphones to be time multiplexed on a single data line using a single clock. The T5838 has multiple modes of operation: High Quality, Low-Power (AlwaysOn), Ultrasonic, and Sleep along with new AlwaysOn modes: Acoustic Activity Detect (AAD) Analog and Digital. The T5838 has high SNR in all operational modes. It has 133 dB SPL AOP in High Quality Mode and 119 dB SPL AOP in Low-Power mode. The T5838 is available in a standard 3.
