TST421GGU-01C
Description
No Connection

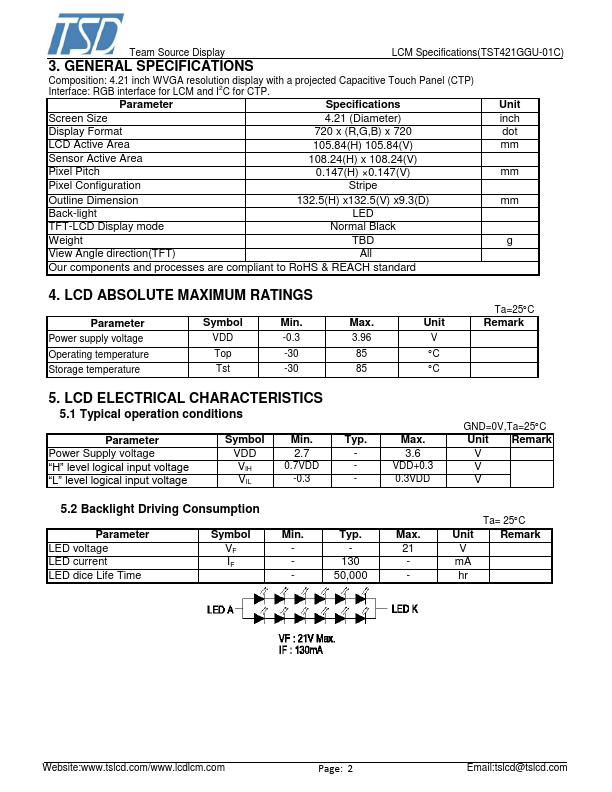

Power supply for analog system
Ground
/RESX
This signal will reset the device and must be applied to properly initialize the chip. Signal is active low.

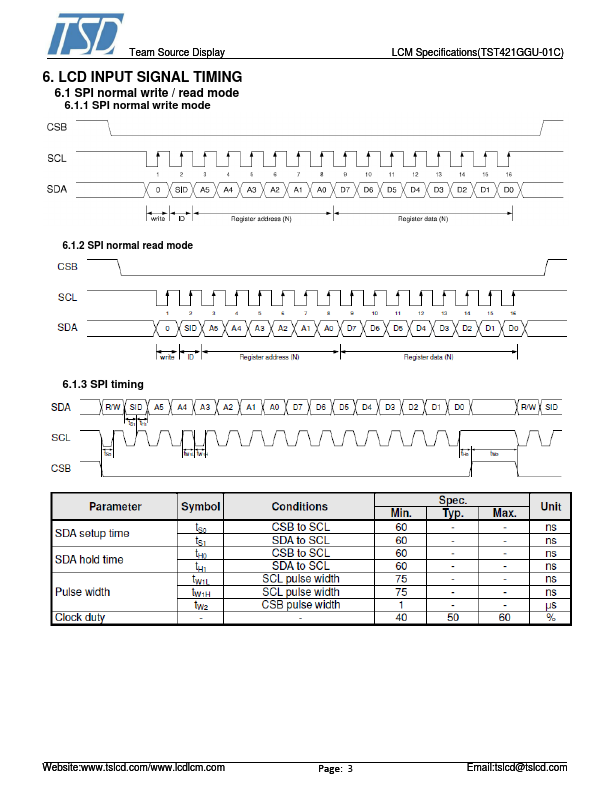

Serial data input signal.
No Connection
Serial data clock signal.
Chip select input pin (“Low” enable).
DCLK
Pixel clock signal.
Data enable signal.
VSYNC
Vertical sync.
HSYNC
Horizontal sync.
Ground
DB0
DB1
DB2
18 19
DB3 DB4
RGB data...
