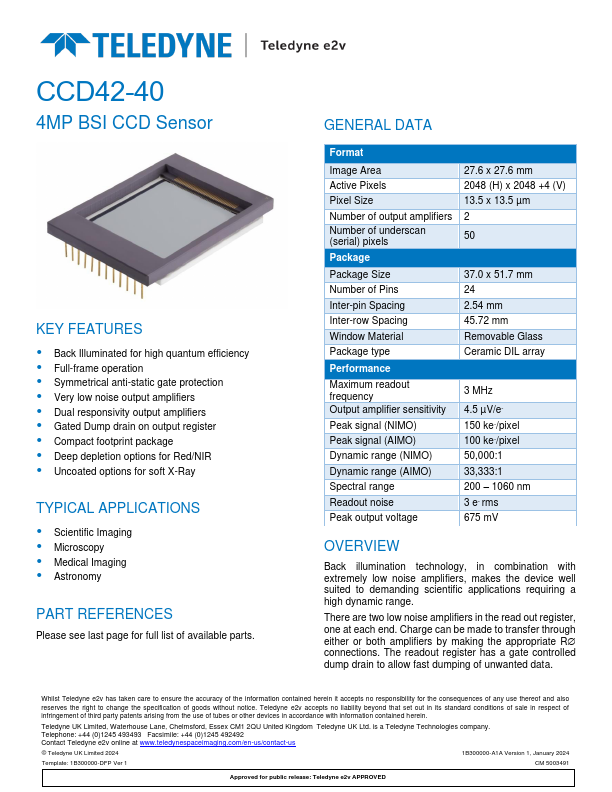

CCD42-40
CCD42-40 is 4MP BSI CCD Sensor manufactured by Teledyne Technologies.
4MP BSI CCD Sensor
KEY Features
- Back Illuminated for high quantum efficiency
- Full-frame operation
- Symmetrical anti-static gate protection
- Very low noise output amplifiers
- Dual responsivity output amplifiers
- Gated Dump drain on output register
- pact footprint package
- Deep depletion options for Red/NIR
- Uncoated options for soft X-Ray
TYPICAL APPLICATIONS
- Scientific Imaging
- Microscopy
- Medical Imaging
- Astronomy
PART REFERENCES
Please see last page for full list of available parts.
GENERAL DATA
Format
Image Area Active Pixels Pixel Size Number of output amplifiers Number of underscan (serial) pixels Package
Package Size Number of Pins Inter-pin Spacing...
