CCD42-40
CCD42-40 is High Performance CCD Sensor manufactured by e2v.

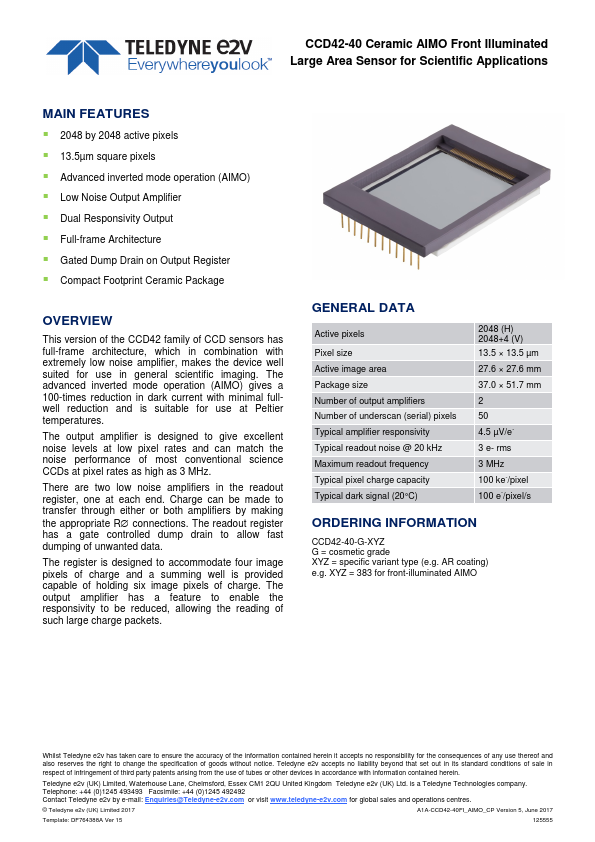

CCD42-40 Ceramic AIMO Front Illuminated Large Area Sensor for Scientific Applications
MAIN Features
- 2048 by 2048 active pixels
- 13.5µm square pixels
- Advanced inverted mode operation (AIMO)
- Low Noise Output Amplifier
- Dual Responsivity Output
- Full-frame Architecture
- Gated Dump Drain on Output Register
- pact Footprint Ceramic Package
OVERVIEW
This version of the CCD42 family of CCD sensors has full-frame architecture, which in bination with extremely low noise amplifier, makes the device well suited for use in general scientific imaging. The advanced inverted mode operation (AIMO) gives a 100-times reduction in dark current with minimal fullwell reduction and is suitable...
