P2020 Overview

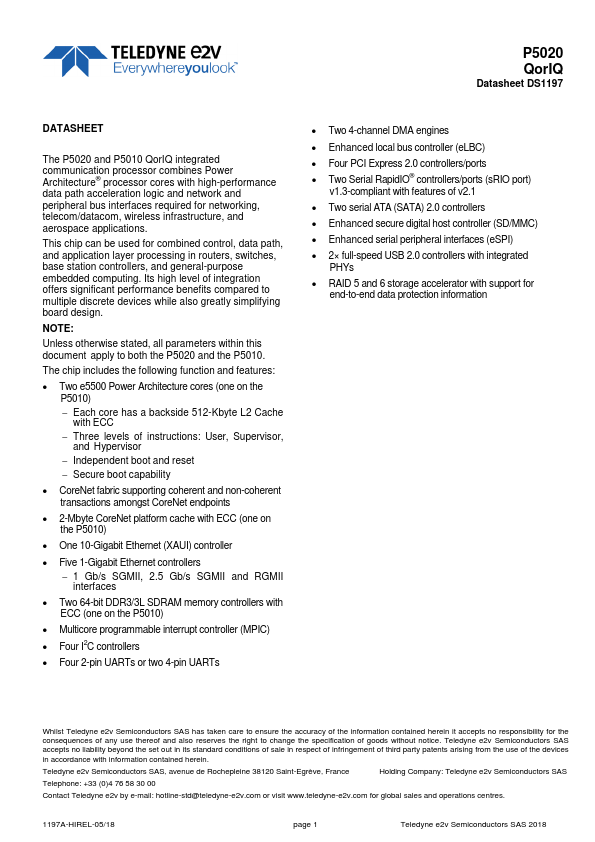

P5020 QorIQ Datasheet DS1197 DATASHEET The P5020 and P5010 QorIQ integrated munication processor bines Power Architecture® processor cores with high-performance data path acceleration logic and network and peripheral bus interfaces required for networking, tele/data, wireless infrastructure, and aerospace applications. This chip can be used for bined control, data path, and application layer processing in routers,...
P2020 Key Features
- Two e5500 Power Architecture cores (one on the P5010)
- Each core has a backside 512-Kbyte L2 Cache with ECC
- Three levels of instructions: User, Supervisor, and Hypervisor
- Independent boot and reset
- Secure boot capability
- CoreNet fabric supporting coherent and non-coherent transactions amongst CoreNet endpoints
- 2-Mbyte CoreNet platform cache with ECC (one on the P5010)
- One 10-Gigabit Ethernet (XAUI) controller
- Five 1-Gigabit Ethernet controllers
- 1 Gb/s SGMII, 2.5 Gb/s SGMII and RGMII interfaces
