PE9702 - Integer-N PLL Radiation Tolerant

Description

Peregrine’s PE9702 is a high-performance integer-N PLL capable of frequency synthesis up to 3000 MHz.

The device is designed for superior phase noise performance while providing an order of magnitude reduction in current consumption, when compared with existing commercial space PLLs.

Features

  • a 10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hard wired. The PE9702 is optimized for commercial space.

📥 Download Datasheet

Datasheet Details

Part number PE9702
Manufacturer TELEDYNE
File Size 2.79 MB
Description Integer-N PLL Radiation Tolerant
Datasheet download datasheet PE9702 Datasheet

📁 Similar Datasheet

  • PE9702 - 3.0 GHz Integer-N PLL (Peregrine Semiconductor)
  • PE9701 - Integer-N PLL Rad Hard (Peregrine Semiconductor)
  • PE9704 - 3.0 GHz Integer-N PLL Radiation Tolerant (Peregrine Semiconductor)
  • PE97240 - Integer-N Frequency Synthesizer (Peregrine Semiconductor)
  • PE9763 - 3.2 GHz Delta-Sigma modulated Fractional-N Frequency Synthesizer (Peregrine Semiconductor)
  • PE97632 - Fractional-N Frequency Synthesizer (Peregrine Semiconductor)
  • PE97632DIE - Fractional-N Frequency Synthesizer (Peregrine Semiconductor)
  • PE90F120 - THYRISTOR MODULE (ETC)
  • PE90F120 - THYRISTOR MODULE (SanRex Corporation)
  • PE90F160 - THYRISTOR MODULE (ETC)
Other Datasheets by TELEDYNE
  • PE97240 - Integer-N Frequency Synthesizer
  • PE97640 - Delta-Sigma Modulated Fractional-N Frequency Synthesizer
  • PE9304 - Low Power Divide-by-2 Prescaler
  • PE9313 - high-performance static UltraCMOS prescaler
  • PE9354 - SPDT High Power RF Switch
  • PE95421 - SPDT RF Switch
  • PE9601 - Integer-N PLL Radiation Tolerant
  • PE99155 - Hi-Rel 10A DC-DC Converter

Full PDF Text Transcription

Click to expand full text

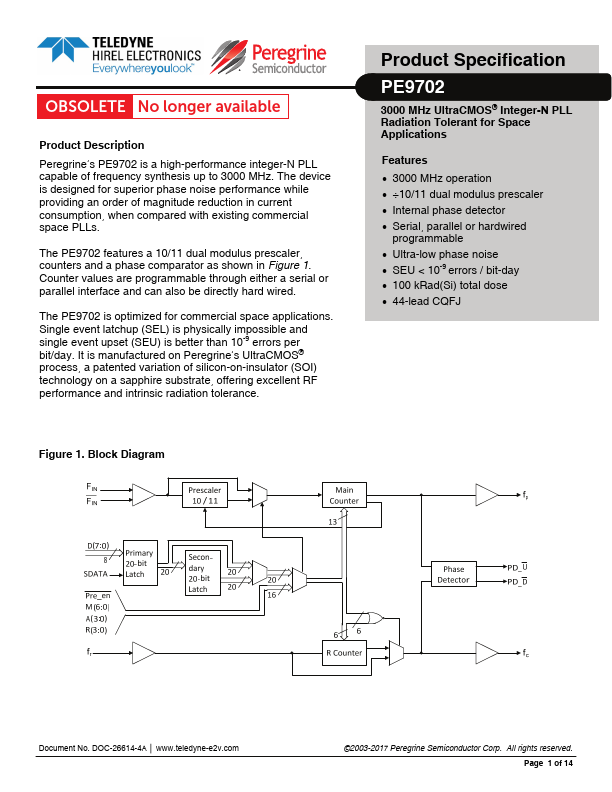

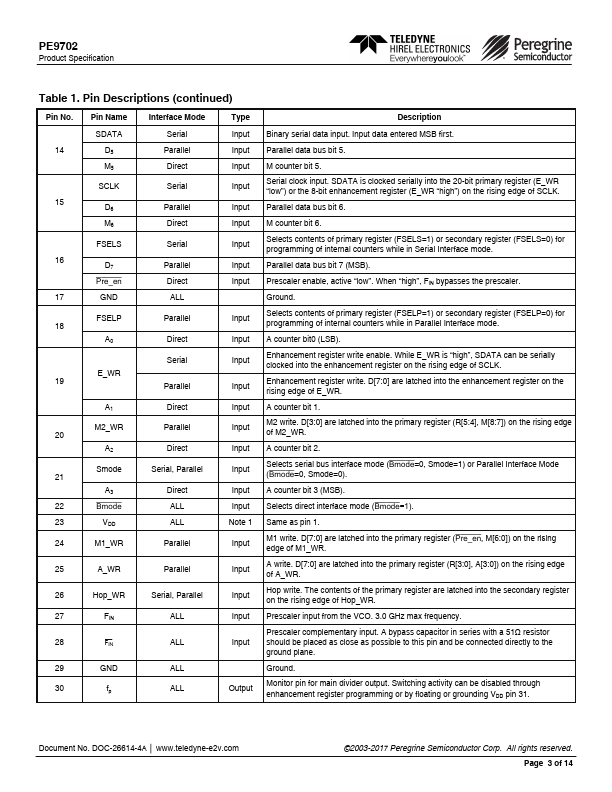

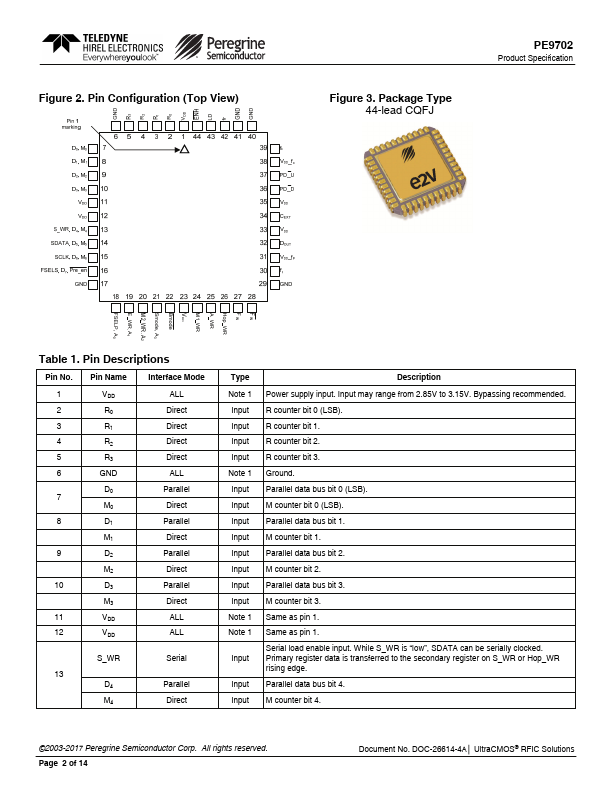

OBSOLETE No longer available Product Description Peregrine’s PE9702 is a high-performance integer-N PLL capable of frequency synthesis up to 3000 MHz. The device is designed for superior phase noise performance while providing an order of magnitude reduction in current consumption, when compared with existing commercial space PLLs. The PE9702 features a 10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hard wired. The PE9702 is optimized for commercial space applications. Single event latchup (SEL) is physically impossible and single event upset (SEU) is better than 10-9 errors per bit/day.
