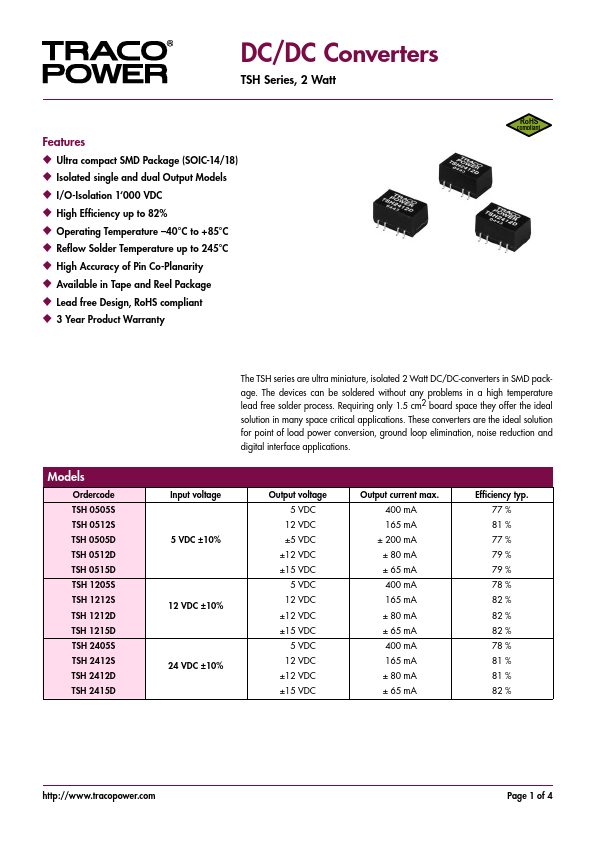

TSH0505D Overview
Key Features
- Ultra compact SMD Package (SOIC-14/18)
- Isolated single and dual Output Models
- I/O-Isolation 1‘000 VDC
- High Efficiency up to 82%
- Operating Temperature –40°C to +85°C
- Reflow Solder Temperature up to 245°C
- High Accuracy of Pin Co-Planarity
- Available in Tape and Reel Package
- Lead free Design, RoHS compliant
