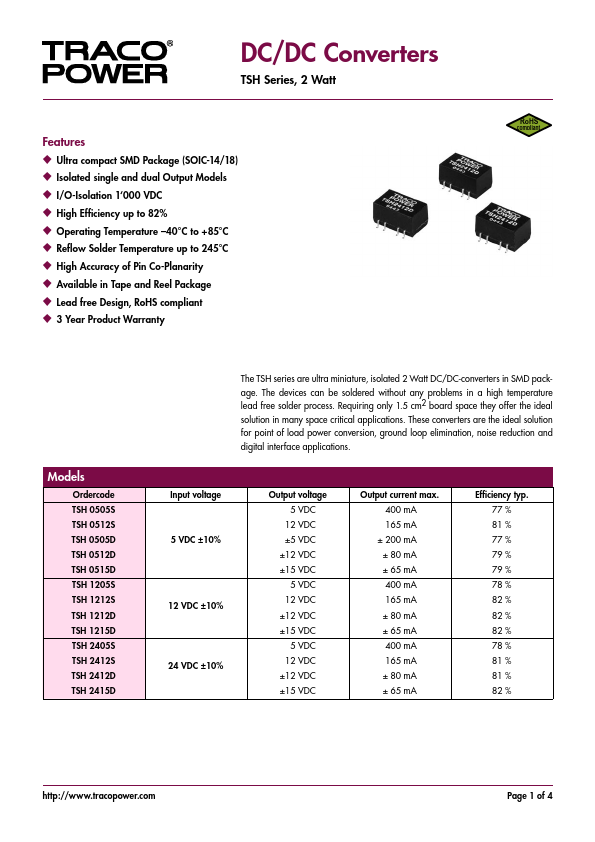

TSH0505S Description
DC/DC Converters TSH Series, 2 Watt.
TSH0505S Key Features
- Ultra pact SMD Package (SOIC-14/18)
- Isolated single and dual Output Models
- I/O-Isolation 1‘000 VDC
- High Efficiency up to 82%
- Operating Temperature -40°C to +85°C
- Reflow Solder Temperature up to 245°C
- High Accuracy of Pin Co-Planarity
- Available in Tape and Reel Package
- Lead free Design, RoHS pliant
- 3 Year Product Warranty
