TDLNA3024QFN Datasheet Low Noise Amplifier

Manufacturer: Teledyne

📥 Download Datasheet

Overview

TELEDYNE HIREL ELECTRONICS RF LNA Product Specification TDLNA3024QFN 2 – 22 GHz Low Noise Amplifier with Adjustable Gain Control Product Overview Teledyne e2v HiRel’s TDLNA3024QFN is a distributed Low Noise Amplifier with Adjustable Gain Control (AGC) which operates between 2 and 22 GHz.

It is designed for a wide range of applications, such as electronic warfare, X and Ku Point-to-Point Radio, and test instrumentation.

The circuit is manufactured with a pHEMT process, 0.15 µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

Key Features

  • Frequency Range: 2.
  • 22 GHz.
  • Noise Figure: 3 dB (typical).
  • Linear Gain: 15 dB (typical).
  • Up to 30 dB adjustable gain with VG2.
  • dc Bias: VD = 5 V @ IDQ = 100 mA, VG1 =.
  • 0.3 V and VG2 = 1.7 V.

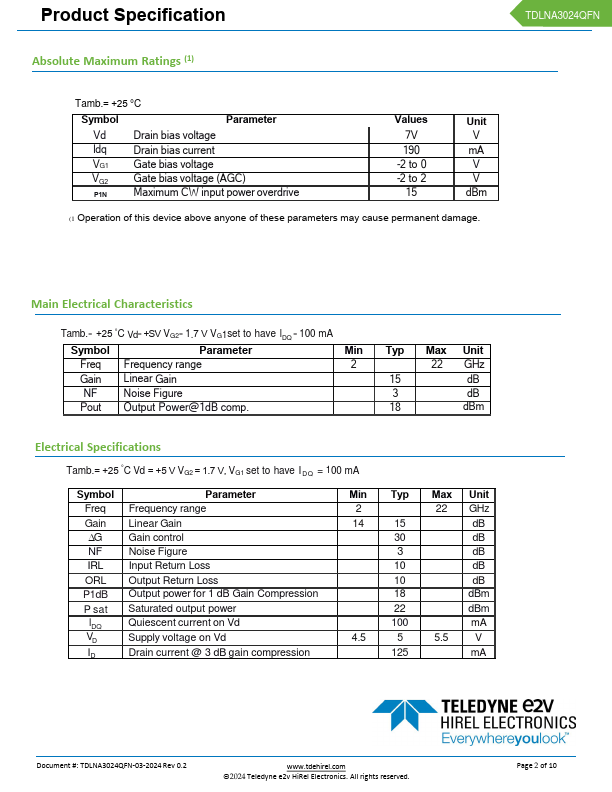

  • MSL Level: 3 A Teledyne Defense Electronics Company Document #: TDLNA3024QFN-03-2024 Rev 0.2 www. tdehirel. com ©2024 Teledyne e2v HiRel Electronics. All rights reserved. Page 1 of 10 Product Specification Absolute Maximum Ratings (1).
