TDLNA3024SP Datasheet Low Noise Amplifier

Manufacturer: Teledyne

📥 Download Datasheet

Datasheet Details

Part number TDLNA3024SP
Manufacturer Teledyne
File Size 676.01 KB
Description Low Noise Amplifier
Download TDLNA3024SP Download (PDF)

Overview

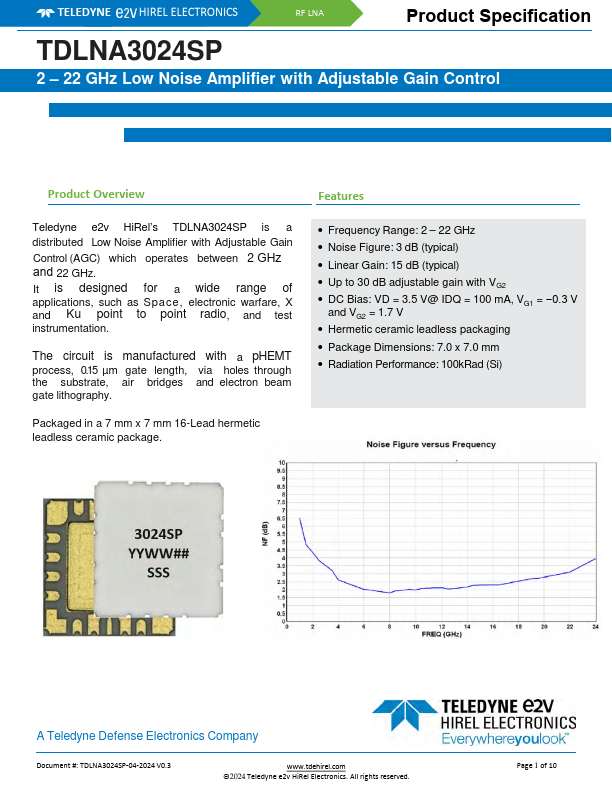

TELEDYNE HIREL ELECTRONICS RF LNA Product Specification TDLNA3024SP 2 – 22 GHz Low Noise Amplifier with Adjustable Gain Control Product Overview Teledyne e2v HiRel’s TDLNA3024SP is a distributed Low Noise Amplifier with Adjustable Gain Control (AGC) which operates between 2 GHz and 22 GHz.

It is designed for a wide range of applications, such as Space, electronic warfare, X and Ku point to point radio, and test instrumentation.

The circuit is manufactured with a pHEMT process, 0.15 µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

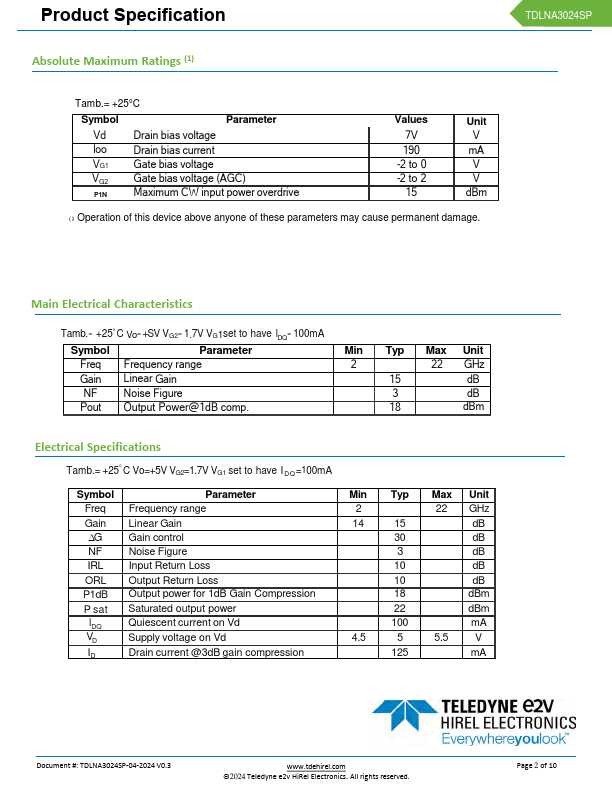

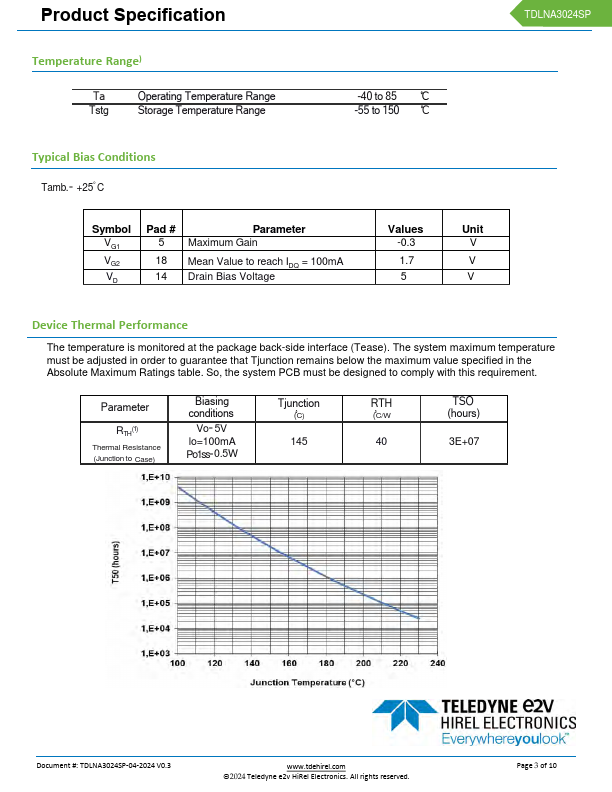

Key Features

  • Frequency Range: 2.
  • 22 GHz.
  • Noise Figure: 3 dB (typical).
  • Linear Gain: 15 dB (typical).
  • Up to 30 dB adjustable gain with VG2.
  • DC Bias: VD = 3.5 V@ IDQ = 100 mA, VG1 =.
  • 0.3 V and VG2 = 1.7 V.
  • Hermetic ceramic leadless packaging.
  • Package Dimensions: 7.0 x 7.0 mm.
  • Radiation Performance: 100kRad (Si) A Teledyne Defense Electronics Company Document #: TDLNA3024SP-04-2024 V0.3 www. tdehirel. com ©2024 Teledyne e.
