XC6101 - Voltage Detector

Product Overview

Torex Semiconductor

Datasheet Details

Part number	XC6101
Manufacturer	Torex Semiconductor
File Size	445.04 KB
Description	Voltage Detector
Datasheet	XC6101 Datasheet

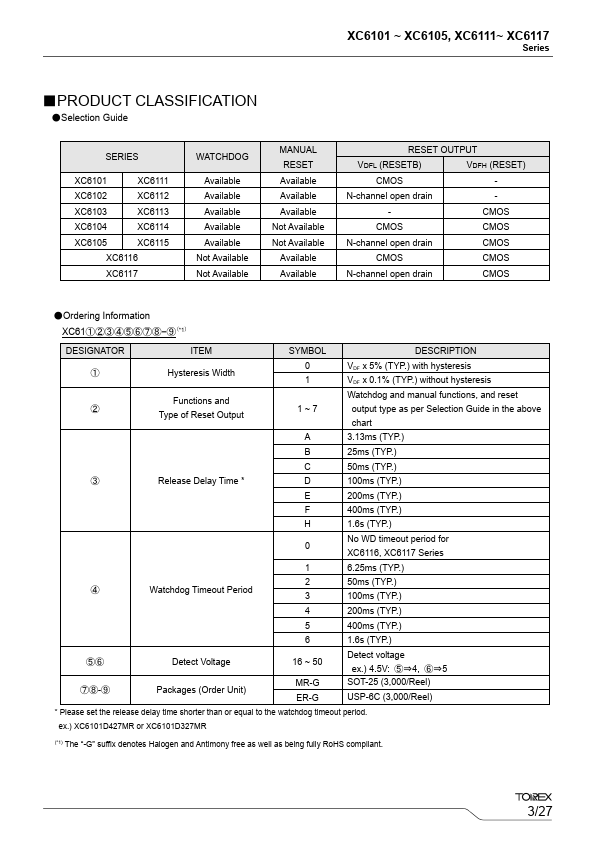

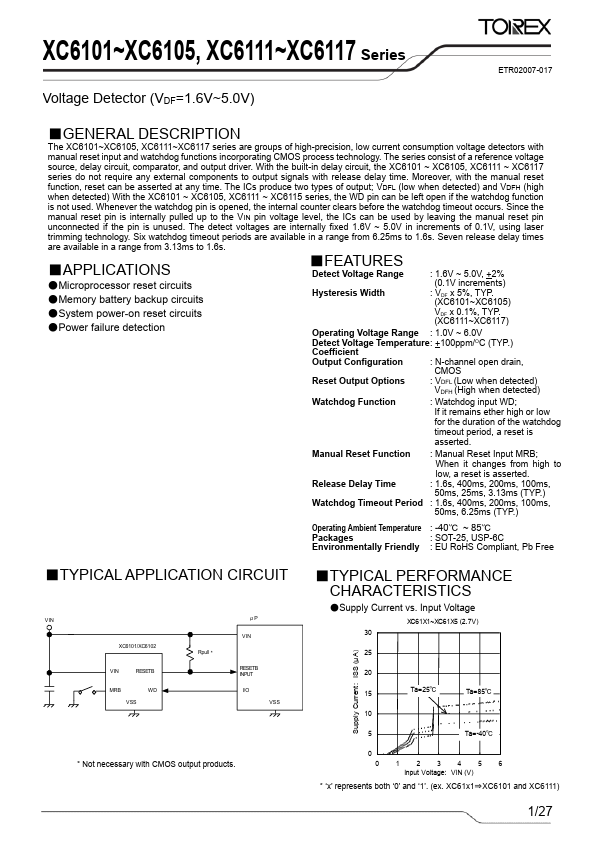

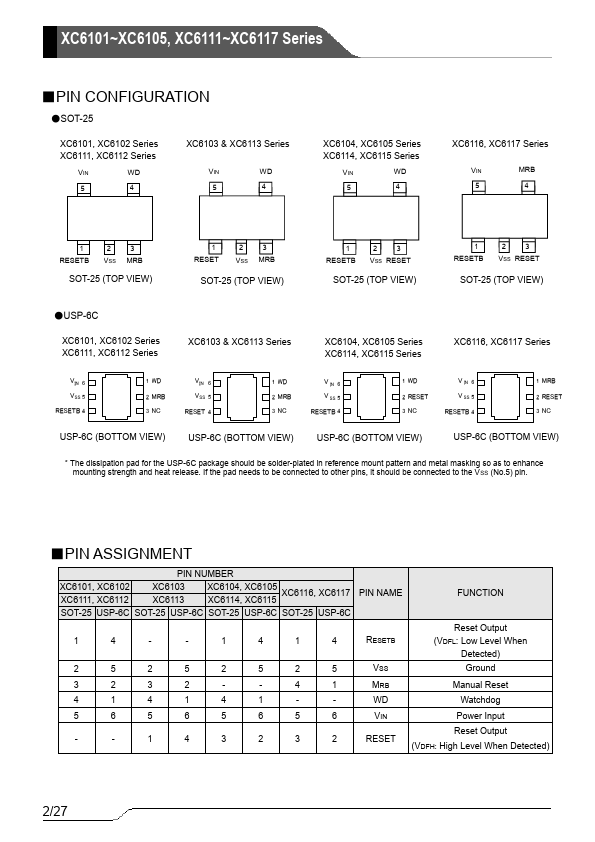

Additional preview pages of the XC6101 datasheet.

Product details

Description

The XC6101~XC6105, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input and watchdog functions incorporating CMOS process technology.The series consist of a reference voltage source, delay circuit, comparator, and output driver.With the built-in delay circuit, the XC6101 ~ XC6105, XC6111 ~ XC6117 series do not require any external components to output signals with release delay time.Moreover, with the manual reset function,

Features

Detect Voltage Range Hysteresis Width : 1.6V ~ 5.0V, +2% (0.1V increments) : VDF x 5%, TYP. (XC6101~XC6105) VDF x 0.1%, TYP. (XC6111~XC6117) Operating Voltage Range : 1.0V ~ 6.0V Detect Voltage Temperature: +100ppm/OC (TYP. ) Coefficient Output Configuration Reset Output Options Watchdog Function : N-channel open drain, CMOS : VDFL (Low when detected) VDFH (High when detected) : Watchdog input WD; If it remains ether high or low for the duration of the watchdog timeout period, a reset is asse.
