XC6107 Datasheet | Torex Semiconductor

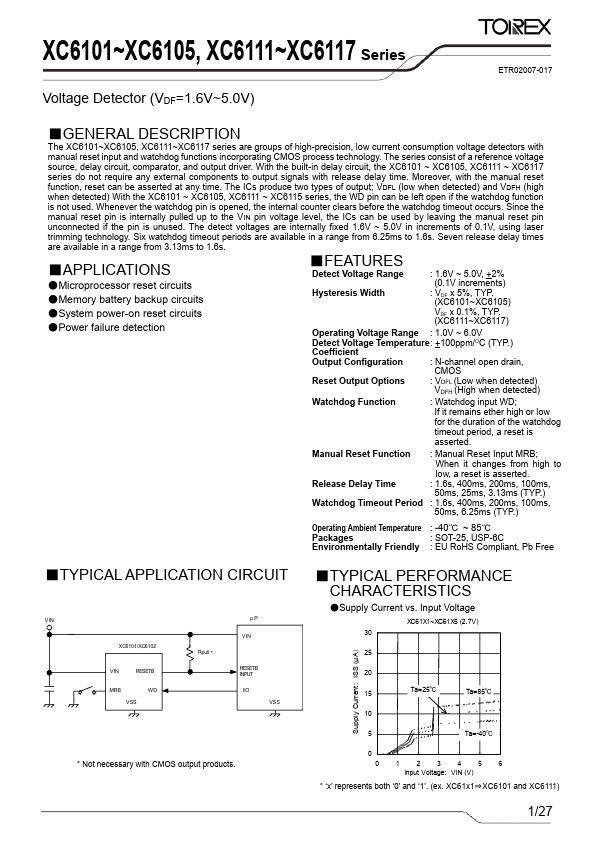

XC6101~XC6105, XC6111~XC6117 Series ETR02007-017 Voltage Detector (VDF=1.6V~5.0V) - GENERAL DESCRIPTION The XC6101~XC6105, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input and watchdog functions incorporating CMOS process technology. The series consist of a reference voltage source, delay circuit, parator, and output driver. With the built-in delay circuit, the XC6101 ~ XC6105, XC6111 ~ XC6117 series do not require any external ponents to output signals with release delay time. Moreover, with the manual reset function, reset can be asserted at any time. The ICs produce two types of output; VDFL (low when...
