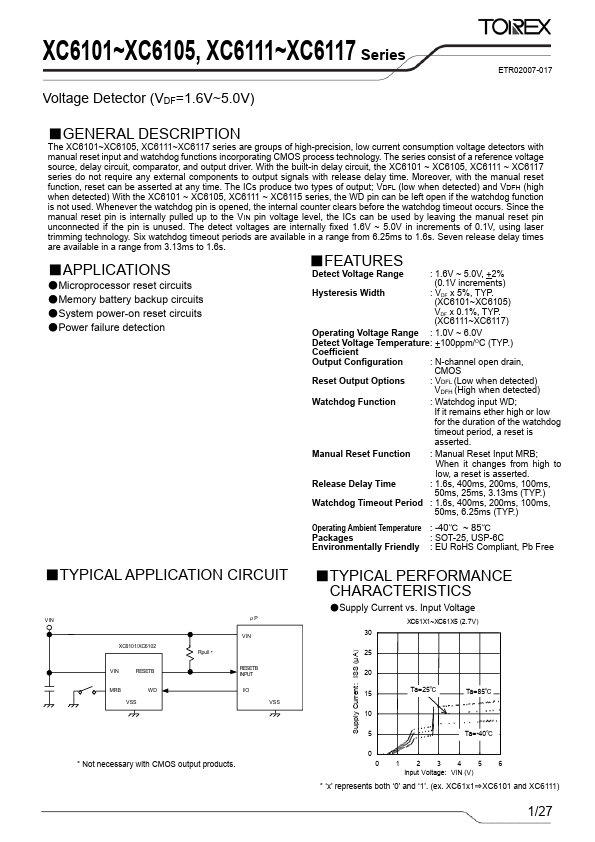

Description
manual reset input and watchdog functions incorporating CMOS process technology.
voltage source, delay circuit, comparator, and output driver.
Features
- Detect Voltage Range Hysteresis Width
: 1.6V ~ 5.0V, +2% (0.1V increments) : VDF x 5%, TYP. (XC6101~XC6105) VDF x 0.1%, TYP. (XC6111~XC6117)
Operating Voltage Range : 1.0V ~ 6.0V Detect Voltage Temperature: +100ppm/OC (TYP. )
Coefficient Output Configuration
Reset Output Options
Watchdog Function
: N-channel open drain, CMOS
: VDFL (Low when detected) VDFH (High when detected)
: Watchdog input WD; If it remains ether high or low for the duration of the watchdog timeout period, a reset is asse.

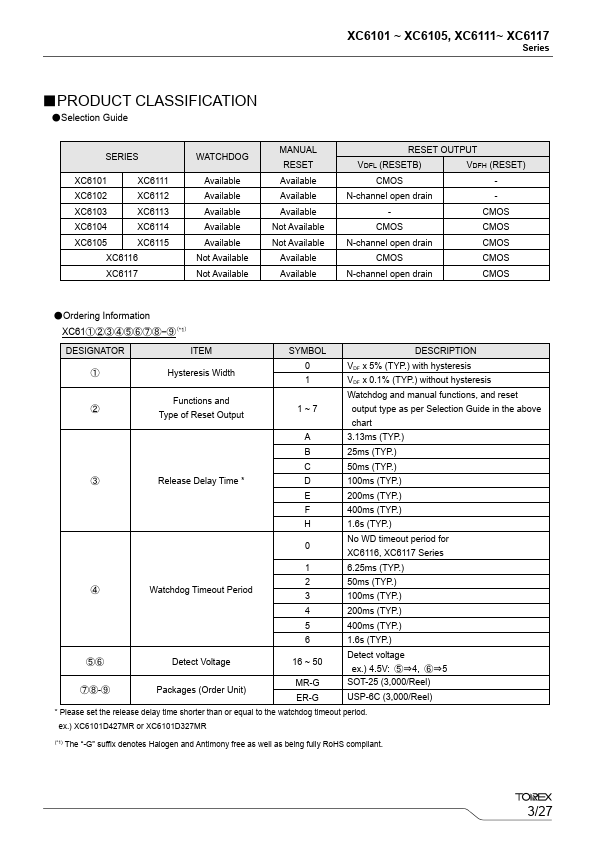

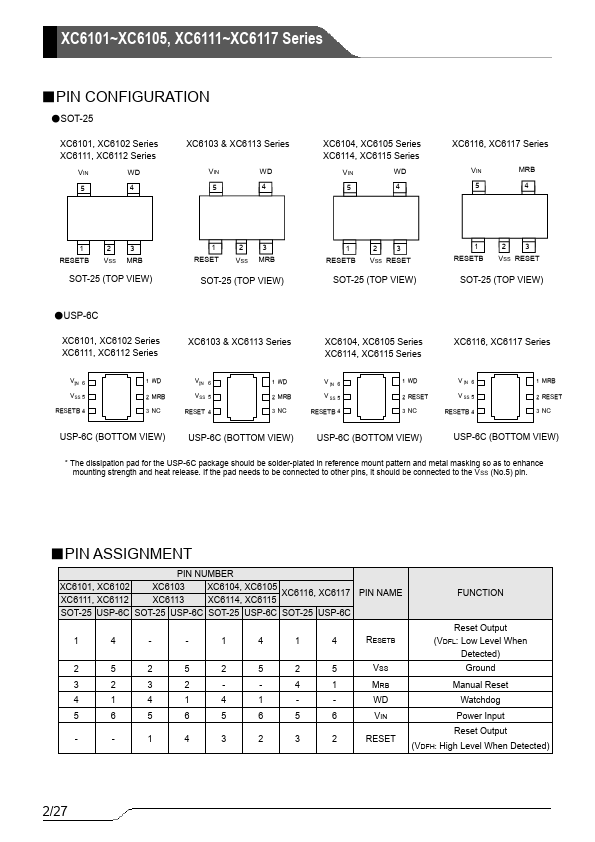

XC6102 Datasheet
