XC6216 datasheet by Torex Semiconductor.
| Part number | XC6216 |
|---|---|
| Datasheet | XC6216_TorexSemiconductor.pdf |
| File Size | 1.71 MB |
| Manufacturer | Torex Semiconductor |
| Description | 28V Low Power Consumption 150mA Voltage Regulators |
|
|

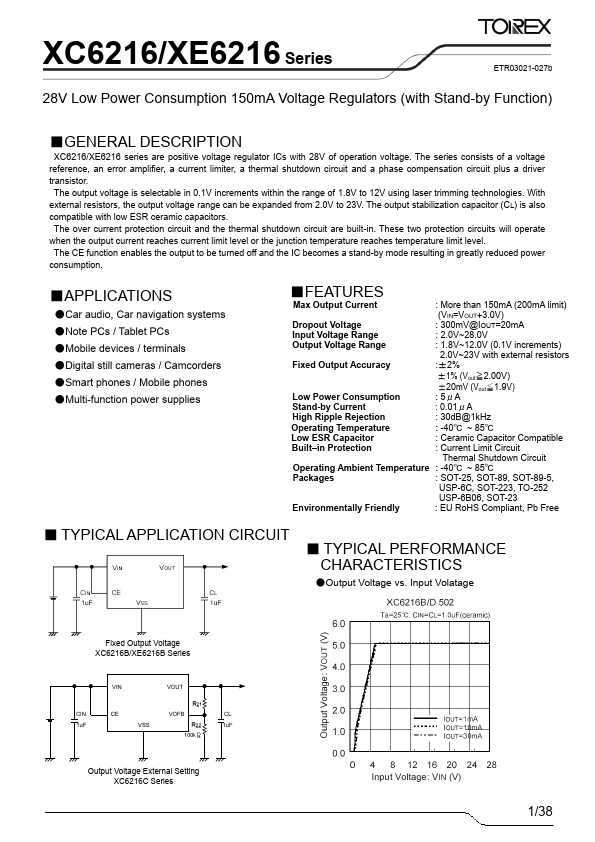

XC6216/XE6216 series are positive voltage regulator ICs with 28V of operation voltage. The series consists of a voltage reference, an error amplifier, a current limiter, a thermal shutdown circuit and a phase pensation circuit plus a driver transistor. The output voltage is selectable in 0.1V increments within the range of 1.8V to 12V using laser trimming technologies.
