XC6230 - 2A High Speed LDO Regulator

General Description

The XC6230 series are low on-resistance / low dropout voltage, highly precise, low noise, high PSRR, and large current High Speed LDO regulator IC.

Key Features

  • Output current : 2.0A Current Limit setting range : 0.3A ~ 2.5A Dropout Voltage (USP-6C) : 0.17V @ IOUT =1.0A / VOUT_SET =3.3V Dropout Voltage (SOP-8FD) : 0.23V@ IOUT=1.0A/ VOUT_SET=3.3V Input voltage range : 1.7V ~ 6.0V Adjustable Output Voltage Accuracy : 1.2V ±1.0% Output voltage setting range : 1.2V ~ 5.0V Supply current : 45μA Addition function : Reverse Current Protection Inrush Current Protection Output Voltage adjustable CL Discharge (A/H type) Current Limit adjustab.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6238 300mA High Speed LDO Regulator Torex
XC6206 100mA Low Dropout CMOS Voltage Regulators JinYu
XC6206 Linear voltage regulator UMW
XC6211 300mA High Speed LDO Regulators Torex
XC6218 Low Power Supply LDO Regulators TOREX

Other Datasheets by Torex Semiconductor

Part Number Description
XC6231 High Speed LDO Regulators
XC6233 200mA High Speed LDO Voltage Regulator
XC6201 Positive Voltage Regulators
XC6202 High Voltage positive Voltage Regulators
XC6203 Large Current Positive Voltage Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

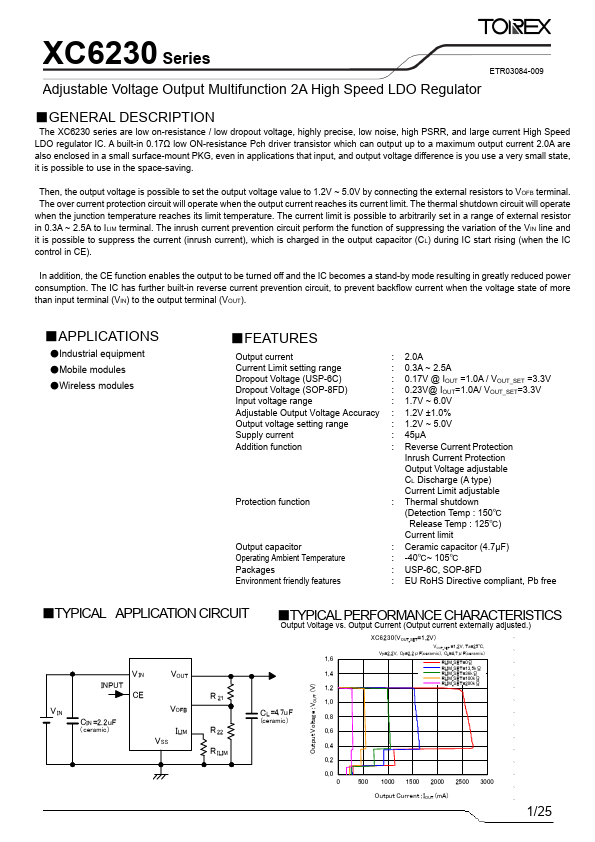

XC6230 Series ETR03084-008a Adjustable Voltage Output Multifunction 2A High Speed LDO Regulator ■GENERAL DESCRIPTION The XC6230 series are low on-resistance / low dropout voltage, highly precise, low noise, high PSRR, and large current High Speed LDO regulator IC. A built-in 0.17Ω low ON-resistance Pch driver transistor which can output up to a maximum output current 2.0A are also enclosed in a small surface-mount PKG, even in applications that input, and output voltage difference is you use a very small state, it is possible to use in the space-saving. Then, the output voltage is possible to set the output voltage value to 1.2V ~ 5.0V by connecting the external resistors to VOFB terminal.
