XC6233 - 200mA High Speed LDO Voltage Regulator

General Description

The XC6233 series is a 200mA high speed LDO regulator that

Key Features

  • high accurate high ripple rejection and low dropout. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a phase compensation circuit and an inrush current prevention circuit. The output voltage is selectable in 0.05V increments (Accuracy ±1%) within the range of 1.2V to 3.6V. The CE function enables the circuit to be in stand-by mode as well as the electric charge at the output capacitor CL to be discharged via the internal switch, and the VOU.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6238 300mA High Speed LDO Regulator Torex
XC6206 100mA Low Dropout CMOS Voltage Regulators JinYu
XC6206 Linear voltage regulator UMW
XC6211 300mA High Speed LDO Regulators Torex
XC6218 Low Power Supply LDO Regulators TOREX

Other Datasheets by Torex Semiconductor

Part Number Description
XC6230 2A High Speed LDO Regulator
XC6231 High Speed LDO Regulators
XC6201 Positive Voltage Regulators
XC6202 High Voltage positive Voltage Regulators
XC6203 Large Current Positive Voltage Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

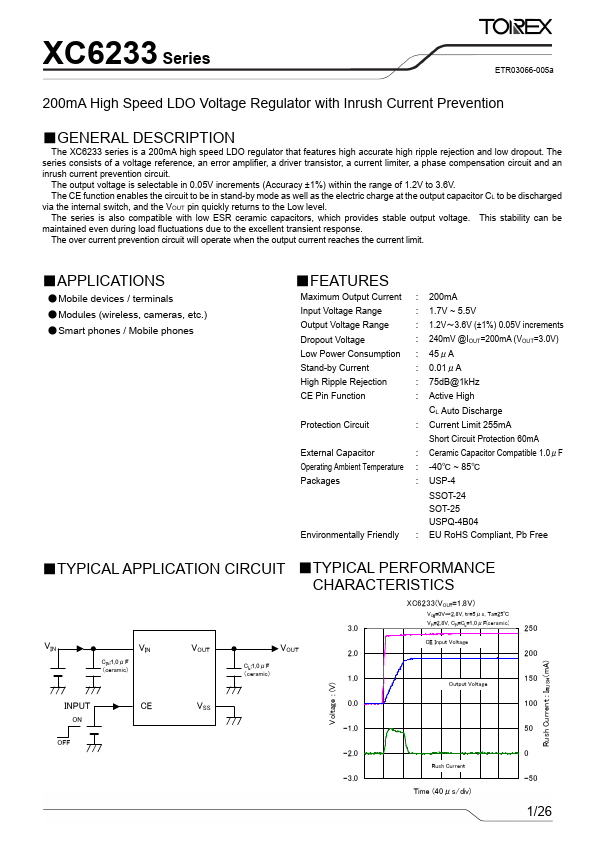

XC6233 Series ETR03066-004 200mA High Speed LDO Voltage Regulator with Inrush Current Prevention ˙GENERAL DESCRIPTION The XC6233 series is a 200mA high speed LDO regulator that features high accurate high ripple rejection and low dropout. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a phase compensation circuit and an inrush current prevention circuit. The output voltage is selectable in 0.05V increments (Accuracy ±1%) within the range of 1.2V to 3.6V. The CE function enables the circuit to be in stand-by mode as well as the electric charge at the output capacitor CL to be discharged via the internal switch, and the VOUT pin quickly returns to the Low level.
