XC6367 - PWM/PFM Switchable Step-up DC/DC Controllers

Datasheet Summary

Description

The XC6367/XC6368 series are multi-functional step-up DC/DC controllers which provide high efficiency outputs by using an externally connected transistor, coil, diode and capacitor.

Output voltage is selectable in 0.1V increments within a range of 1.5V ~ 6.5V (±2.5%).

Features

  • put Voltage Range : 0.9V ~ 10V Operating Voltage Range : 2.0V ~ 10V Output Voltage Range : 1.5V ~ 6.5V (0.1V increments) (±2.5%) Oscillation Frequency : 300kHz, 100kHz (±15%) Custom products for 180kHz, 500kHz Output Current : More than 200mA (VIN=1.8V, VOUT=3.3V) High Efficiency : 84% (TYP. ) Stand-by capability : ISTB=0.5μA (MAX. ) Selection : Soft-start set-up external Output voltage set-up internal (VOUT) Output voltage set-up external (FB) PWM/PFM Control (XC6368) Package : SO.

📥 Download Datasheet

Datasheet preview – XC6367

Datasheet Details

Part number XC6367
Manufacturer Torex Semiconductor
File Size 4.73 MB
Description PWM/PFM Switchable Step-up DC/DC Controllers
Datasheet download datasheet XC6367 Datasheet

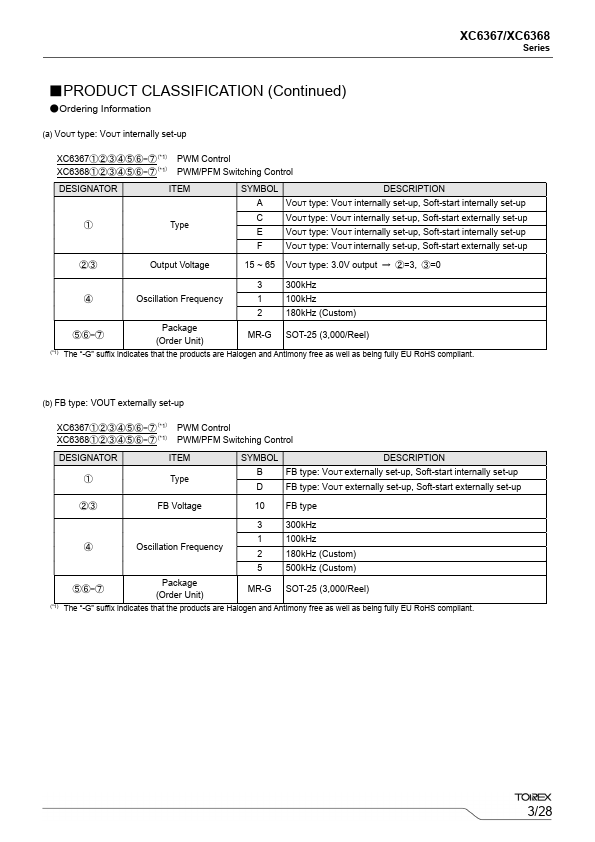

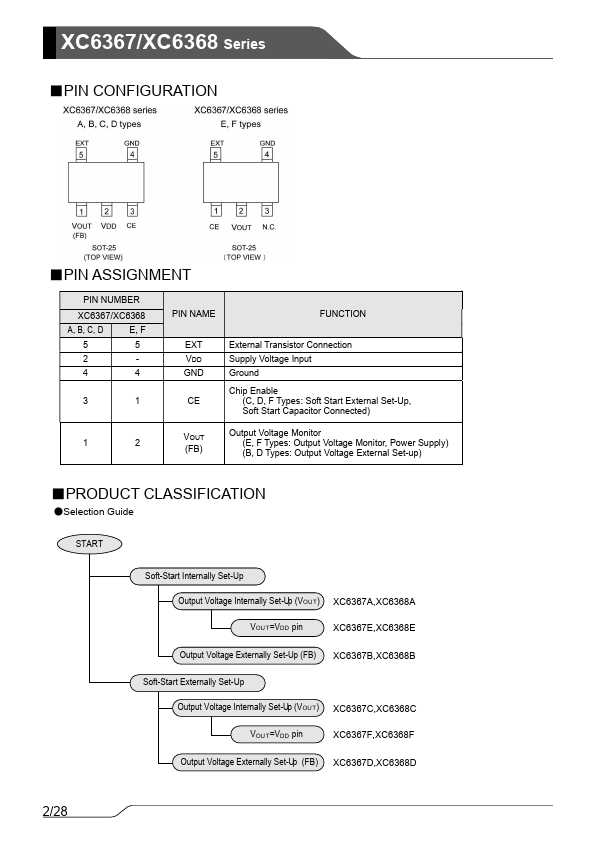

Additional preview pages of the XC6367 datasheet.

📁 Similar Datasheet

  • XC6365 - PWM/PFM Switchable Step-Down DC/DC Controllers (TOREX)
  • XC6366 - PWM/PFM Switchable Step-Down DC/DC Controllers (TOREX)
  • XC610 - high performance and highly integrated SoC (XinChip)
  • XC6119 - Voltage Detector (Torex)
  • XC6126 - Single Voltage Detector (Torex)
  • XC6127 - Ultra Small Voltage Detector (Torex)
  • XC6129 - Voltage Detector (Torex)
  • XC6132 - Delay capacitor adjustable voltage detector (Torex)
  • XC6133 - Delay capacitor adjustable voltage detector (Torex)
  • XC6134 - Delay capacitor adjustable voltage detector (Torex)
Other Datasheets by Torex Semiconductor
  • XC6368 - PWM/PFM Switchable Step-up DC/DC Controllers
  • XC6351A - Charge Pump Voltage Inverter
  • XC6371 - Step-up DC/DC Converter
  • XC6372 - Step-up DC/DC Converter
  • XC6381 - PFM CONTROLLED STEP UP DC/DC CONVERTERS
  • XC6382 - PFM CONTROLLED STEP UP DC/DC CONVERTERS
  • XC6383 - XC6383
  • XC6385 - Step-Up DC/DC Converter

Full PDF Text Transcription

Click to expand full text

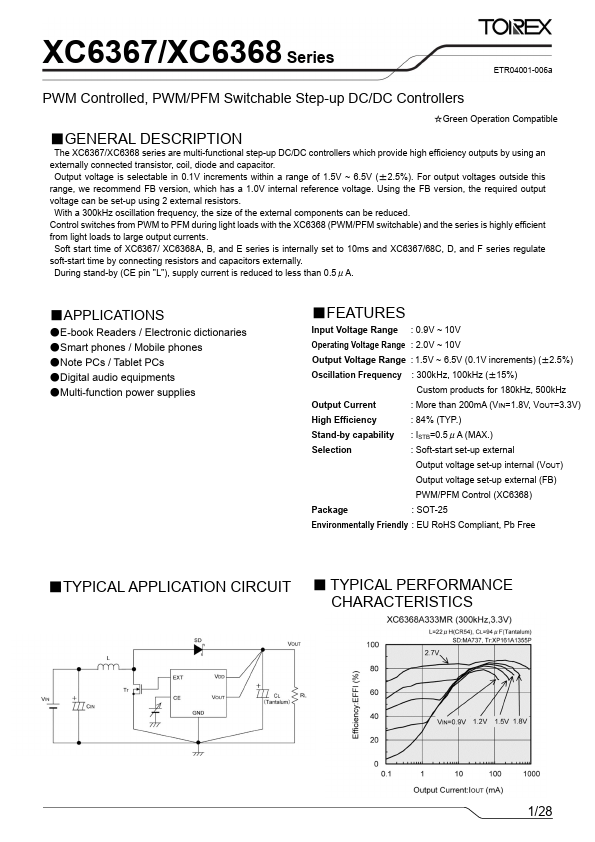

XC6367/XC6368 Series ETR04001-006a PWM Controlled, PWM/PFM Switchable Step-up DC/DC Controllers ☆Green Operation Compatible ■GENERAL DESCRIPTION The XC6367/XC6368 series are multi-functional step-up DC/DC controllers which provide high efficiency outputs by using an externally connected transistor, coil, diode and capacitor. Output voltage is selectable in 0.1V increments within a range of 1.5V ~ 6.5V (±2.5%). For output voltages outside this range, we recommend FB version, which has a 1.0V internal reference voltage. Using the FB version, the required output voltage can be set-up using 2 external resistors. With a 300kHz oscillation frequency, the size of the external components can be reduced.
