XC6368 - PWM/PFM Switchable Step-up DC/DC Controllers

Download the XC6368 datasheet PDF. This datasheet also covers the XC6367 variant, as both devices belong to the same pwm/pfm switchable step-up dc/dc controllers family and are provided as variant models within a single manufacturer datasheet.

General Description

The XC6367/XC6368 series are multi-functional step-up DC/DC controllers which provide high efficiency outputs by using an externally connected transistor, coil, diode and capacitor.

Output voltage is selectable in 0.1V increments within a range of 1.5V ~ 6.5V (±2.5%).

Key Features

  • put Voltage Range : 0.9V ~ 10V Operating Voltage Range : 2.0V ~ 10V Output Voltage Range : 1.5V ~ 6.5V (0.1V increments) (±2.5%) Oscillation Frequency : 300kHz, 100kHz (±15%) Custom products for 180kHz, 500kHz Output Current : More than 200mA (VIN=1.8V, VOUT=3.3V) High Efficiency : 84% (TYP. ) Stand-by capability : ISTB=0.5μA (MAX. ) Selection : Soft-start set-up external Output voltage set-up internal (VOUT) Output voltage set-up external (FB) PWM/PFM Control (XC6368) Package : SO.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC6367-TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC6365 PWM/PFM Switchable Step-Down DC/DC Controllers TOREX
XC6366 PWM/PFM Switchable Step-Down DC/DC Controllers TOREX
XC610 high performance and highly integrated SoC XinChip
XC6119 Voltage Detector Torex
XC6126 Single Voltage Detector Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6367 PWM/PFM Switchable Step-up DC/DC Controllers
XC6351A Charge Pump Voltage Inverter
XC6371 Step-up DC/DC Converter
XC6372 Step-up DC/DC Converter
XC6381 PFM CONTROLLED STEP UP DC/DC CONVERTERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

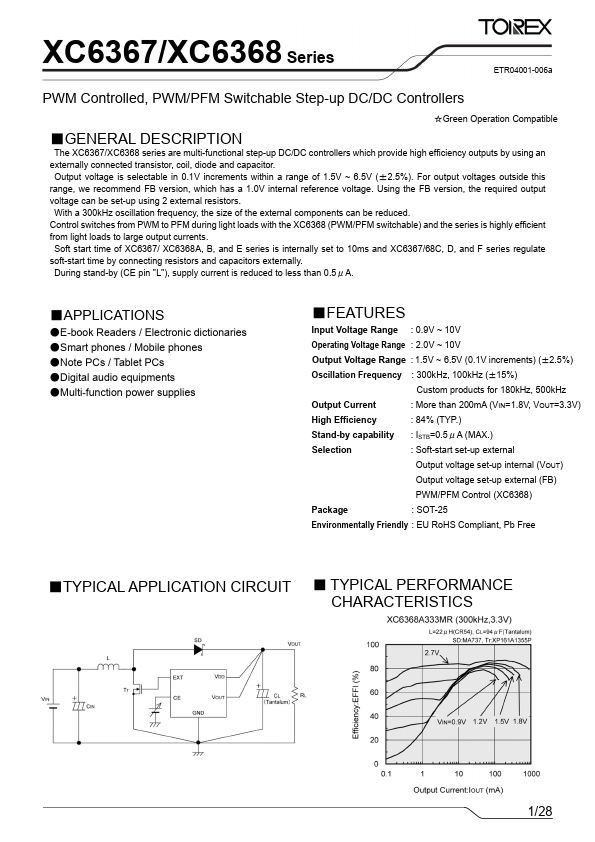

XC6367/XC6368 Series ETR04001-006a PWM Controlled, PWM/PFM Switchable Step-up DC/DC Controllers ☆Green Operation Compatible ■GENERAL DESCRIPTION The XC6367/XC6368 series are multi-functional step-up DC/DC controllers which provide high efficiency outputs by using an externally connected transistor, coil, diode and capacitor. Output voltage is selectable in 0.1V increments within a range of 1.5V ~ 6.5V (±2.5%). For output voltages outside this range, we recommend FB version, which has a 1.0V internal reference voltage. Using the FB version, the required output voltage can be set-up using 2 external resistors. With a 300kHz oscillation frequency, the size of the external components can be reduced.
