XC6411 - Low Power Consumption Dual Voltage Regulator

Datasheet Summary

Description

The XC6411P/XC6412B series is a dual LDO regulator manufactured using CMOS process.

Features

  • Maximum Output Current : 200mA (300mA Limit TYP. ) @ VOUT=3.0V, VIN=4.0V Dropout Voltage : 320mV @ IOUT = 100mA @ VOUT = 3.0V Input Voltage Range : 1.5V ~ 6.0V Output Voltage Range : 0.9V ~ 5.0V (0.1V increments) Highly Accurate :±2% (1.5V＜VOUT≦5.0V) ±0.03V (0.9V≦VOUT≦1.5V) Low Power Consumption : 0.8μA / ch. (TYP. ) Low ESR Capacitor Compatible: Ceramic capacitor Current Limiter Circuit Built-In Operating Ambient Temperature : - 40℃~ 85℃ Small Packages : SOT-25 (XC6411P) SOT-26 (.

📥 Download Datasheet

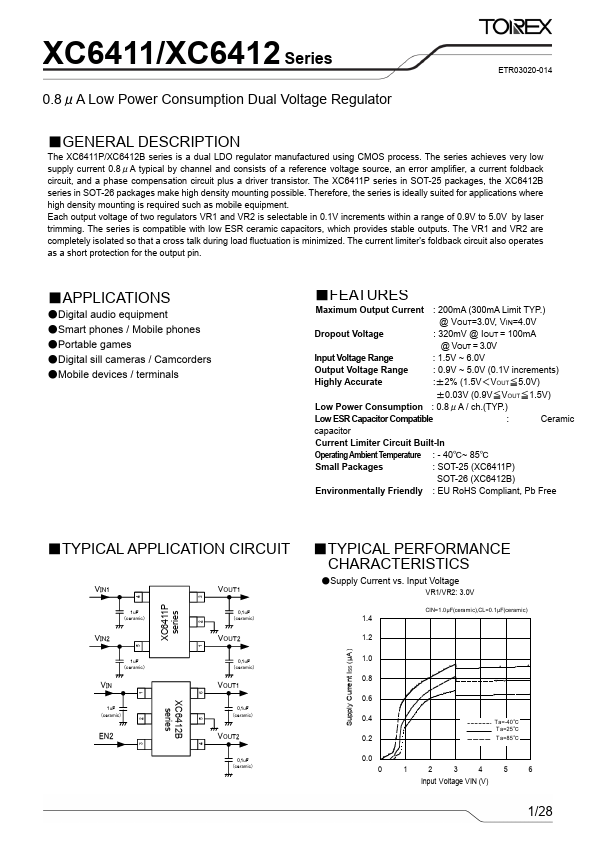

Datasheet preview – XC6411

Datasheet Details

Part number XC6411
Manufacturer Torex Semiconductor
File Size 494.01 KB
Description Low Power Consumption Dual Voltage Regulator
Datasheet download datasheet XC6411 Datasheet
Additional preview pages of the XC6411 datasheet.

📁 Similar Datasheet

  • XC610 - high performance and highly integrated SoC (XinChip)
  • XC6119 - Voltage Detector (Torex)
  • XC6126 - Single Voltage Detector (Torex)
  • XC6127 - Ultra Small Voltage Detector (Torex)
  • XC6129 - Voltage Detector (Torex)
  • XC6132 - Delay capacitor adjustable voltage detector (Torex)
  • XC6133 - Delay capacitor adjustable voltage detector (Torex)
  • XC6134 - Delay capacitor adjustable voltage detector (Torex)
  • XC6138 - Multi-function voltage detectors (Torex)
  • XC6140 - Voltage monitoring (Torex)
Other Datasheets by Torex Semiconductor
  • XC6412 - Low Power Consumption Dual Voltage Regulator
  • XC6413 - High Speed LDO Regulators
  • XC6414 - High Speed LDO Regulators
  • XC6415 - Dual LDO Regulator
  • XC6416 - Dual LDO Voltage Regulator
  • XC6419 - Dual LDO Regulator
  • XC641A - CMOS Low Power Consumption
  • XC6401 - CMOS LDO voltage regulator

Full PDF Text Transcription

Click to expand full text
XC6411/XC6412 Series 0.8μA Low Power Consumption Dual Voltage Regulator ETR0320_013 ■GENERAL DESCRIPTION The XC6411P/XC6412B series is a dual LDO regulator manufactured using CMOS process. The series achieves very low supply current 0.8μA typical by channel and consists of a reference voltage source, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The XC6411P series in SOT-25 packages, the XC6412B series in SOT-26 packages make high density mounting possible. Therefore, the series is ideally suited for applications where high density mounting is required such as mobile equipment. Each output voltage of two regulators VR1 and VR2 is selectable in 0.1V increments within a range of 0.9V to 5.0V by laser trimming.
