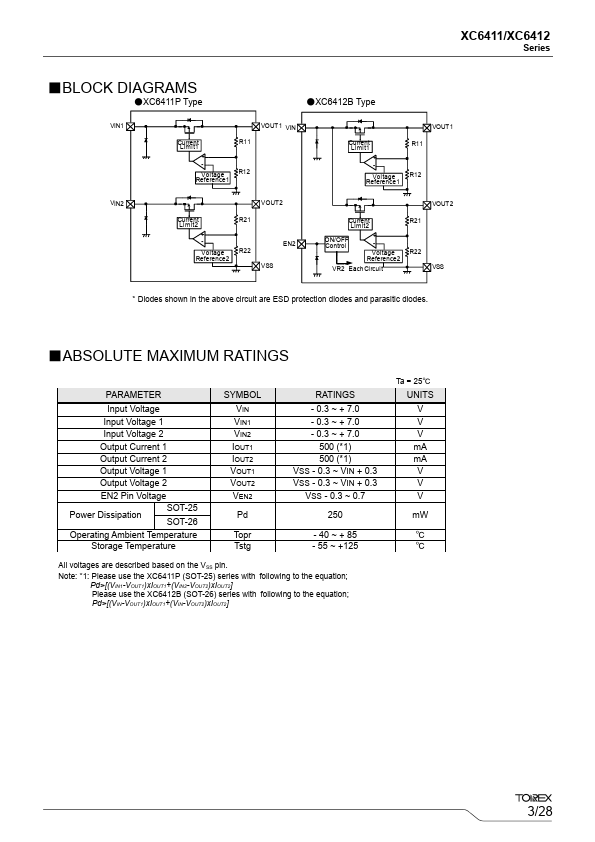

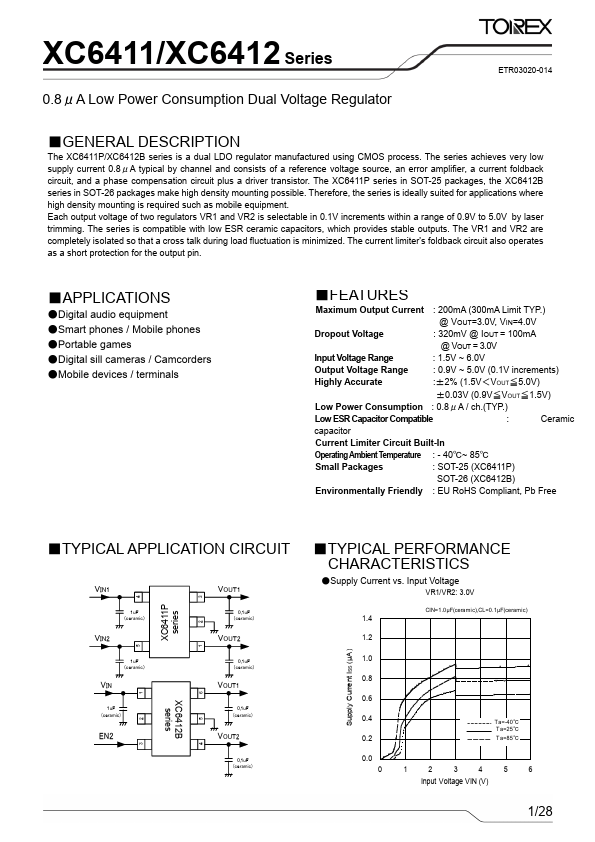

XC6411/XC6412 Series 0.8μA Low Power Consumption Dual Voltage Regulator ETR03020-014 - GENERAL DESCRIPTION The XC6411P/XC6412B series is a dual LDO regulator manufactured using CMOS process. The series achieves very low supply current 0.8μA typical by channel and consists of a reference voltage source, an error amplifier, a current foldback circuit, and a phase pensation circuit plus a driver transistor. The XC6411P series in SOT-25 packages, the XC6412B series in SOT-26 packages make high density mounting possible. Therefore, the series is ideally suited for applications where high density mounting is required such as mobile equipment. Each output voltage of two regulators VR1 and VR2...
