XC9303 Datasheet Synchronous Step-Up & Down DC/DC Controller

Manufacturer: Torex Semiconductor

Overview: XC9303 Series High Efficiency, Synchronous Step-Up & Down DC / DC Controller ICs ETR0602_005 ☆Green Operation.

📥 Download Datasheet

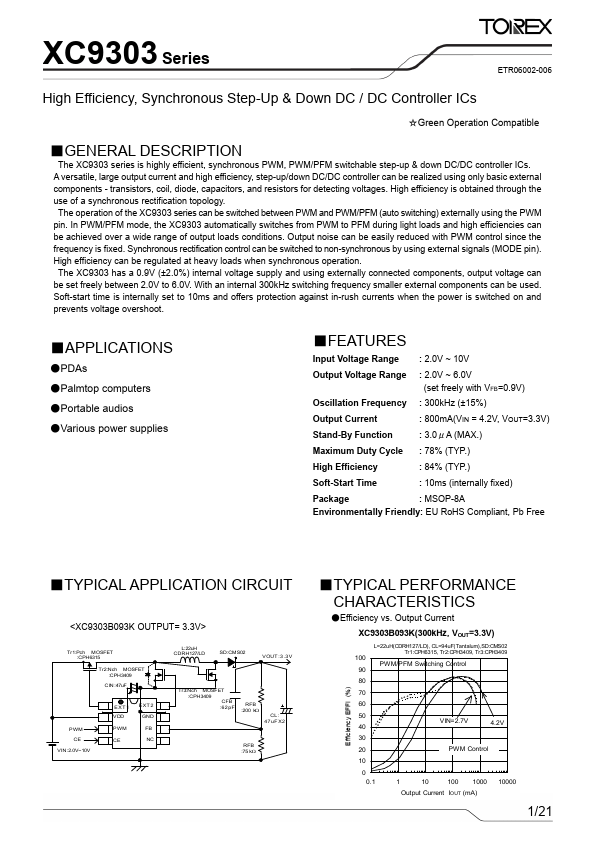

XC9303 synchronous step-up & down dc/dc controller by Torex Semiconductor - Datasheet Preview

Datasheet Details

Part number	XC9303
Manufacturer	Torex Semiconductor
File Size	694.62 KB
Description	Synchronous Step-Up & Down DC/DC Controller
Download	XC9303 Download (PDF)

General Description

The XC9303 series is highly efficient, synchronous PWM, PWM/PFM switchable step-up & down DC/DC controller ICs.

A versatile, large output current and high efficiency, step-up/down DC/DC controller can be realized using only basic external components - transistors, coil, diode, capacitors, and resistors for detecting voltages.

High efficiency is obtained through the use of a synchronous rectification topology.

Key Features

nput Voltage Range : 2.0V ~ 10V Output Voltage Range Oscillation Frequency : 2.0V ~ 6.0V (set freely with VFB=0.9V) : 300kHz (±15%) Output Current : 800mA(VIN = 4.2V, VOUT=3.3V) Stand-By Function : 3.0μA (MAX. ) Maximum Duty Cycle : 78% (TYP. ) High Efficiency : 84% (TYP. ) Soft-Start Time : 10ms (internally fixed) Package : MSOP-8A Environmentally Friendly: EU RoHS Compliant, Pb Free.
