XCL209 - 400mA Inductor Built-in Step-Down micro DC/DC Converters

This page provides the datasheet information for the XCL209, a member of the XCL208 400mA Inductor Built-in Step-Down micro DC/DC Converters family.

Product Overview

Torex Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	XCL209
Manufacturer	Torex Semiconductor
File Size	1.44 MB
Description	400mA Inductor Built-in Step-Down micro DC/DC Converters
Datasheet	XCL209 Datasheet

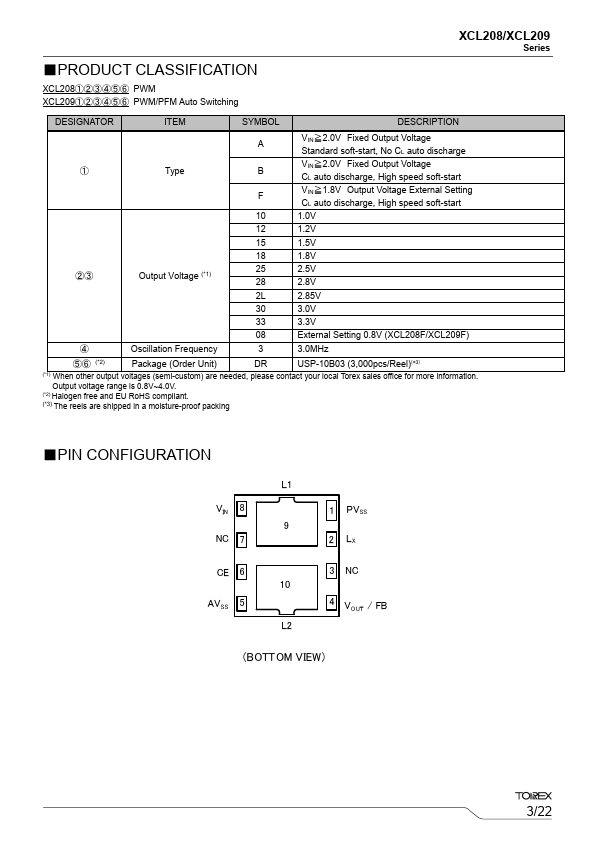

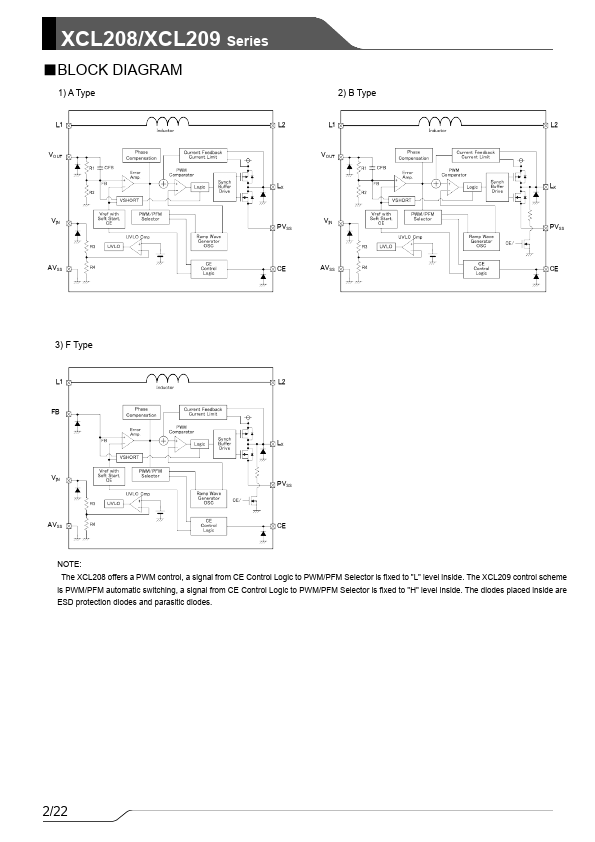

Additional preview pages of the XCL209 datasheet.

XCL209 Product details

Description

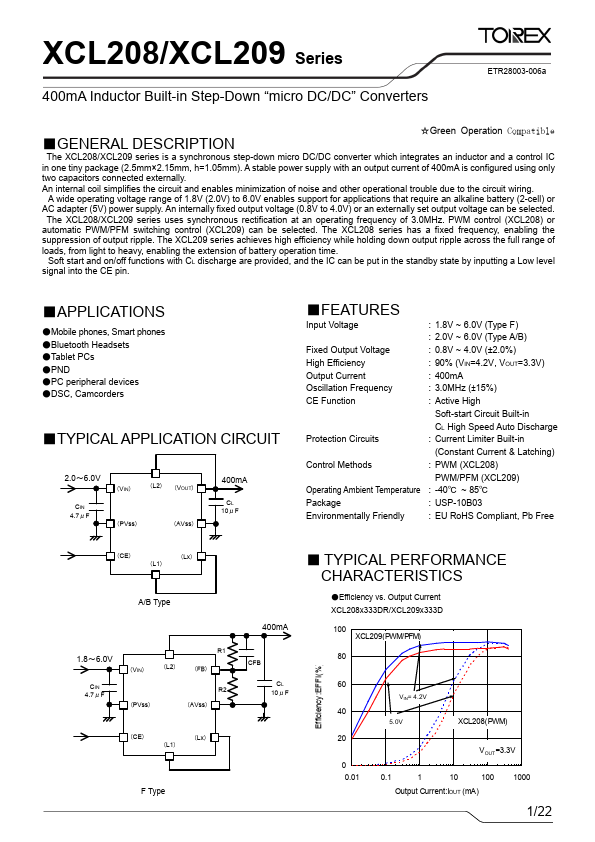

The XCL208/XCL209 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.15mm, h=1.05mm).

A stable power supply with an output current of 400mA is configured using only two capacitors connected externally.

Features

age Fixed Output Voltage High Efficiency Output Current Oscillation Frequency CE Function Protection Circuits Control Methods Operating Ambient Temperature Package Environmentally Friendly : 1.8V ~ 6.0V (Type F) : 2.0V ~ 6.0V (Type A/B) : 0.8V ~ 4.0V (±2.0%) : 90% (VIN=4.2V, VOUT=3.3V) : 400mA : 3.0MHz (±15%) : Active High Soft-start Circuit Built-in CL High Speed Auto Discharge : Current Limiter Built-in (Constant Current & Latching) : PWM (XCL208) PWM/PFM (XCL209) : -40℃ ~ 85℃ : USP-10B03 : E.
