XC6505 - High Speed 200mA LDO Regulator

General Description

Even the XC6505 series is a low power consumption such as 5.5μA, the IC is a high speed CMOS LDO regulator that

Key Features

  • Maximum Output Current Input Voltage Output Voltage Accuracy Temperature Stability Dropout Voltage Low Power Consumption Chip Enable(CE) High Ripple Rejection Protection Operating Ambient Temperature Packages Environmentally Friendly : 200mA : 1.7V ~ 10.5V : 1.5V ~ 8.0V (0.1V increments) : ±1.0% (2.0V~8.0V) ±20mV (1.5V~1.9V) : ±30ppm/℃ : 190mV ＠ VOUT=3.3V, IOUT =100mA : 5.5μA (TYP. ) : Active High 0.1μA (Stand-by) : 60dB＠1kHz : Current Limiter (300mA, TYP. ) Short current (110mA, TYP. ) Thermal Sh.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6501 High Speed LDO Regulator Torex Semiconductor
XC6501A High Speed LDO Regulator Torex Semiconductor
XC6501B High Speed LDO Regulator Torex Semiconductor
XC6501C High Speed LDO Regulator Torex Semiconductor
XC6501D High Speed LDO Regulator Torex Semiconductor

Other Datasheets by Torex Semiconductor

Part Number Description
XC6503 High Speed LDO Regulator
XC6119 Voltage Detector
XC6126 Single Voltage Detector
XC6127 Ultra Small Voltage Detector
XC6129 Voltage Detector

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

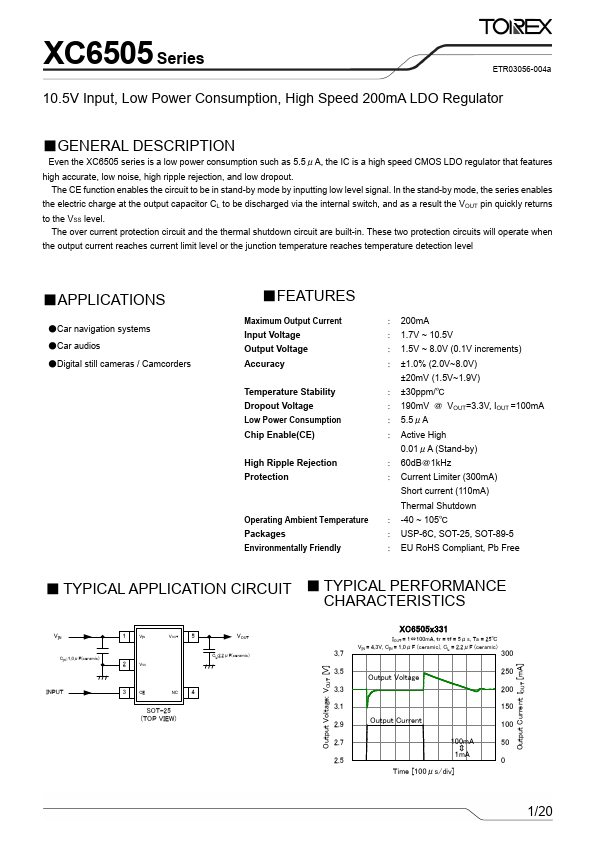

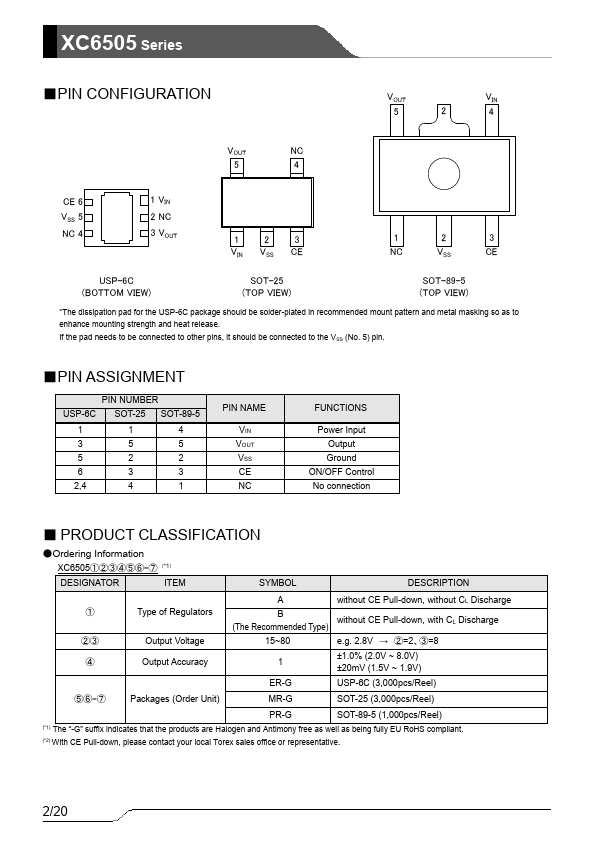

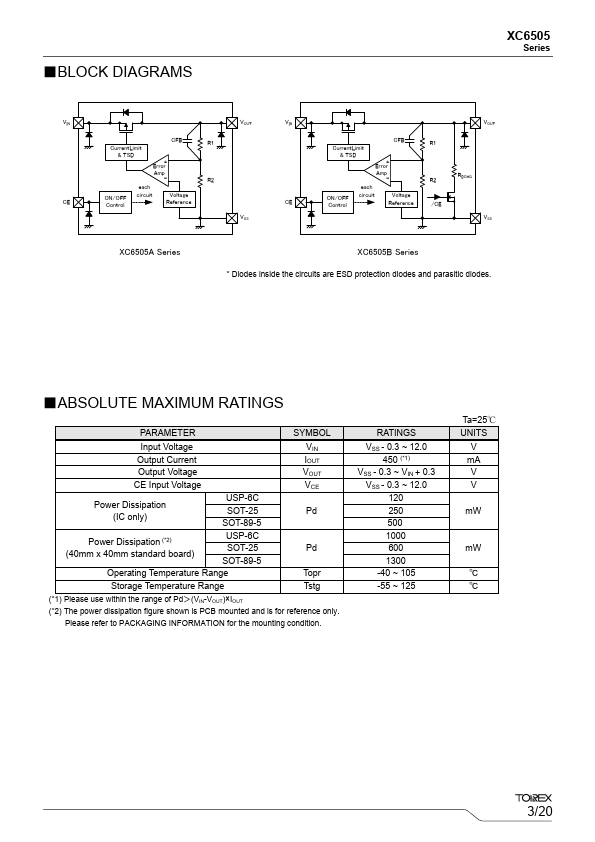

XC6505 Series ETR03056-004 10.5V Input, Low Power Consumption, High Speed 200mA LDO Regulator ■GENERAL DESCRIPTION Even the XC6505 series is a low power consumption such as 5.5μA, the IC is a high speed CMOS LDO regulator that features high accurate, low noise, high ripple rejection, and low dropout. The CE function enables the circuit to be in stand-by mode by inputting low level signal. In the stand-by mode, the series enables the electric charge at the output capacitor CL to be discharged via the internal switch, and as a result the VOUT pin quickly returns to the VSS level. The over current protection circuit and the thermal shutdown circuit are built-in.
