XC6501C datasheet by Torex Semiconductor.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | XC6501C |
|---|---|
| Datasheet | XC6501C XC6501 Datasheet (PDF) |
| File Size | 1.05 MB |
| Manufacturer | Torex Semiconductor |
| Description | High Speed LDO Regulator |
|
|

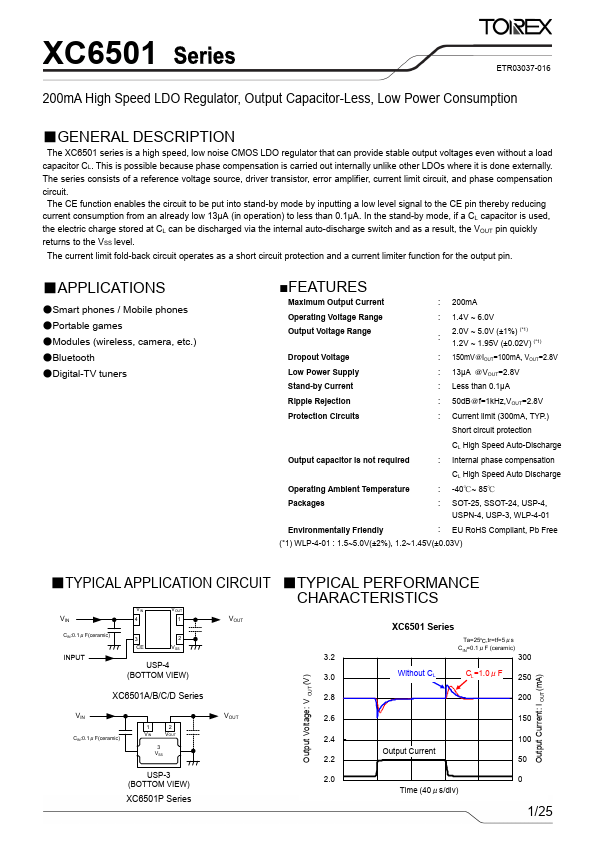

The XC6501 series is a high speed, low noise CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL. This is possible because phase pensation is carried out internally unlike other LDOs where it is done externally. The series consists of a reference voltage source, driver transistor, error amplifier, current limit circuit, and phase pensation circuit.
