XC6501P - High Speed LDO Regulator

Product Overview

Torex Semiconductor

Part number	XC6501P
Manufacturer	Torex Semiconductor
File Size	1.05 MB
Description	High Speed LDO Regulator
Datasheet	XC6501P Datasheet
Note	This datasheet PDF includes multiple part numbers: XC6501P, XC6501. Please refer to the document for exact specifications by model.

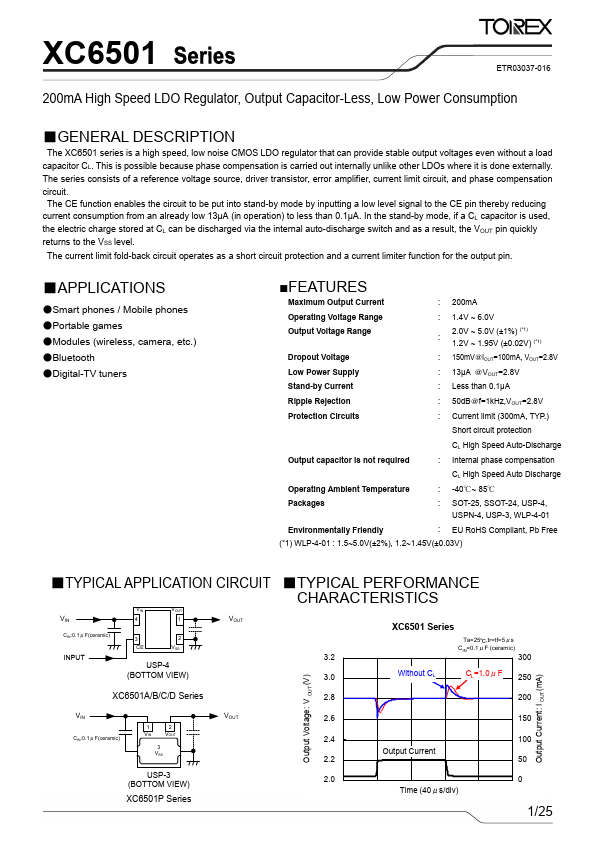

Additional preview pages of the XC6501P datasheet.

The XC6501 series is a high speed, low noise CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL.

Maximum Output Current : 200mA Operating Voltage Range Output Voltage Range Dropout Voltage Low Power Supply Stand-by Current : 1.4V ~ 6.0V 2.0V ~ 5.0V (±1%) (.
1) : 1.2V ~ 1.95V (±0.02V) (.
1) : 150mV＠IOUT=100mA, VOUT=2.8V : 13μA ＠VOUT=2.8V : Less than 0.1μA Ripple Rejection Protection Circuits : 50dB＠f=1kHz,VOUT=2.8V : Current limit (300mA, TYP. ) Short circuit protection CL High Speed Auto-Discharge Output capacitor is not required : Internal phase compensation CL High Speed Au.
