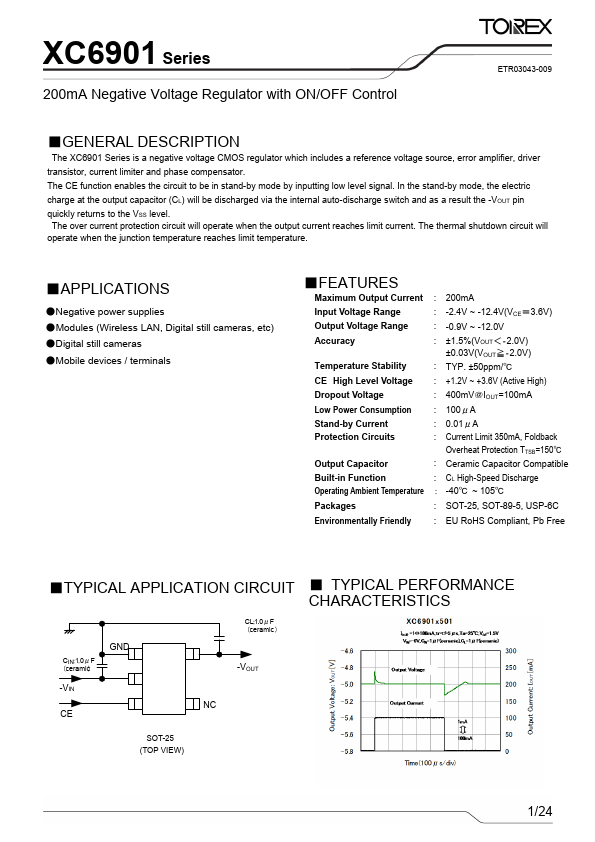

TOREX SEMICONDUCTOR XC6901
The XC6901 Series is a negative voltage CMOS regulator which includes a reference voltage source, error amplifier, driver transistor, current limiter and phase compensator. The CE function enables the circuit to be in stand-by mode by inputting low level signal. The over current protection circuit will operate when the output current reaches limit current.| Part No. | XC6901 |
|---|---|
| Datasheet | XC6901 Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | 200mA Negative Voltage Regulator |
| Buy | Stock & Price |
GENERAL DESCRIPTION
In the stand-by mode, the electric charge at the output capacitor (CL) will be discharged via the internal auto-discharge switch and as a result the -VOUT pin quickly returns to the VSS level. The thermal shutdown circuit will operate when the junction temperature reaches limit temperature.●
APPLICATIONS
●Negative power supplies●Modules (Wireless LAN, Digital still cameras, etc)
●Digital still cameras
●Mobile devices / terminals
●
FEATURES
Maximum Output Current Input Voltage Range Output Voltage Range Accuracy Temperature Stability CE High Level Voltage Dropout Voltage Low Power Consumption Stand-by Current Protection Circuits Output Capacitor Built-in Function Operating Ambient Temperature Packages Environmentally Friendly : 200mA : -2.4V ~ -12.4V(VCE＝3.6V) : -0.9V ~ -12.0V : ±1.5%(VOUT＜‐2.0V) ±0.03V(VOUT≧‐2.0V) : TYP. ±50ppm/℃ : +1.2V ~ +3.6V (Active High) : 400mV＠IOUT=100mA : 100μA : 0.01μA : Current Limit 350mA, Foldback Overheat Protection TTSB=150℃ : Ceramic...
