XC6902 - -16V Input Three Terminal Negative Voltage Regulator

Datasheet Summary

Description

The XC6902 Series is a negative voltage CMOS regulator which includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators.

XC6902 is a 3 terminal negative voltage regulator (without CE pin) which is capable of accepting -16V input.

Features

  • Maximum Output Current : 200mA Input Voltage Range : -2.4 ~ -16V Output Voltage Range : -0.9 ~ -12V Accuracy : ±1.5% for -2.0V ~ -12V ±30mV (-0.9V ~ -1.95V) Temperature Stability : TYP. ±50ppm/℃ Dropout Voltage Low Power Consumption : 400mV＠IOUT=100mA : 100μA Protection Circuits : Current Limit 350mA TYP. Foldback Thermal Shutdown (150℃) Output Capacitor : Ceramic Capacitor Compatible Operating Ambient : -40℃ ~ 85℃ Temperature Packages : SOT-23, SOT-89, USP-6C Environment.

📥 Download Datasheet

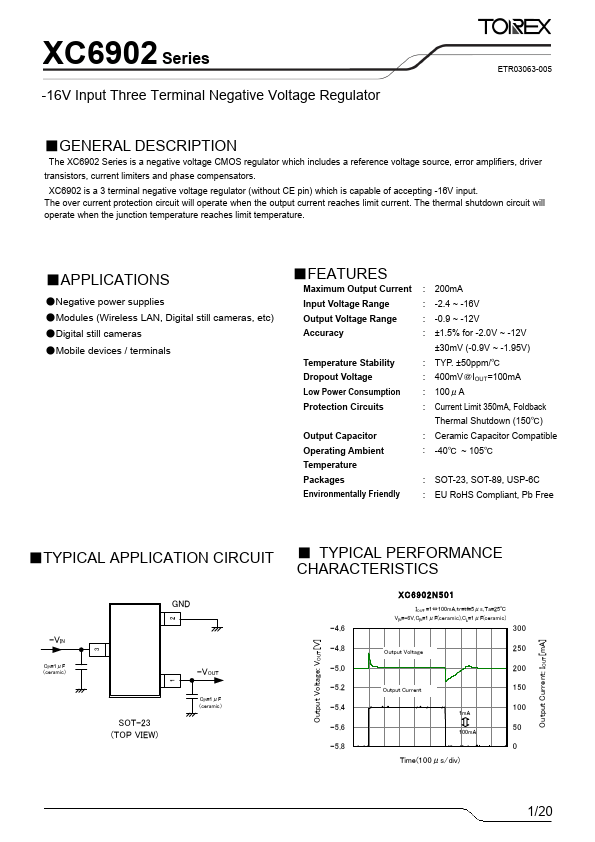

Datasheet preview – XC6902

Datasheet Details

Part number XC6902
Manufacturer Torex
File Size 728.57 KB
Description -16V Input Three Terminal Negative Voltage Regulator
Datasheet download datasheet XC6902 Datasheet
Additional preview pages of the XC6902 datasheet.

📁 Similar Datasheet

  • XC6901 - 200mA Negative Voltage Regulator (Torex Semiconductor)
  • XC610 - high performance and highly integrated SoC (XinChip)
  • XC6101 - Voltage Detector (Torex Semiconductor)
  • XC6102 - Voltage Detector (Torex Semiconductor)
  • XC6103 - Voltage Detector (Torex Semiconductor)
  • XC6104 - Voltage Detector (Torex Semiconductor)
  • XC6105 - Voltage Detector (Torex Semiconductor)
  • XC6106 - Voltage Detector (Torex Semiconductor)
  • XC6107 - Voltage Detector (Torex Semiconductor)
  • XC6108 - Voltage Detector (Torex Semiconductor)
Other Datasheets by Torex
  • XC6119 - Voltage Detector
  • XC6126 - Single Voltage Detector
  • XC6127 - Ultra Small Voltage Detector
  • XC6129 - Voltage Detector
  • XC6132 - Delay capacitor adjustable voltage detector
  • XC6133 - Delay capacitor adjustable voltage detector
  • XC6134 - Delay capacitor adjustable voltage detector
  • XC6138 - Multi-function voltage detectors

Full PDF Text Transcription

Click to expand full text
XC6902 Series -16V Input Three Terminal Negative Voltage Regulator ETR03063-004b ■GENERAL DESCRIPTION The XC6902 Series is a negative voltage CMOS regulator which includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. XC6902 is a 3 terminal negative voltage regulator (without CE pin) which is capable of accepting -16V input. The over current protection circuit will operate when the output current reaches limit current. The thermal shutdown circuit will operate when the junction temperature reaches limit temperature. ■APPLICATIONS ●Negative power supplies ●Modules (Wireless LAN, Digital still cameras, etc) ●Digital still cameras ●Mobile devices / terminals ■FEATURES Maximum Output Current : 200mA Input Voltage Range : -2.
