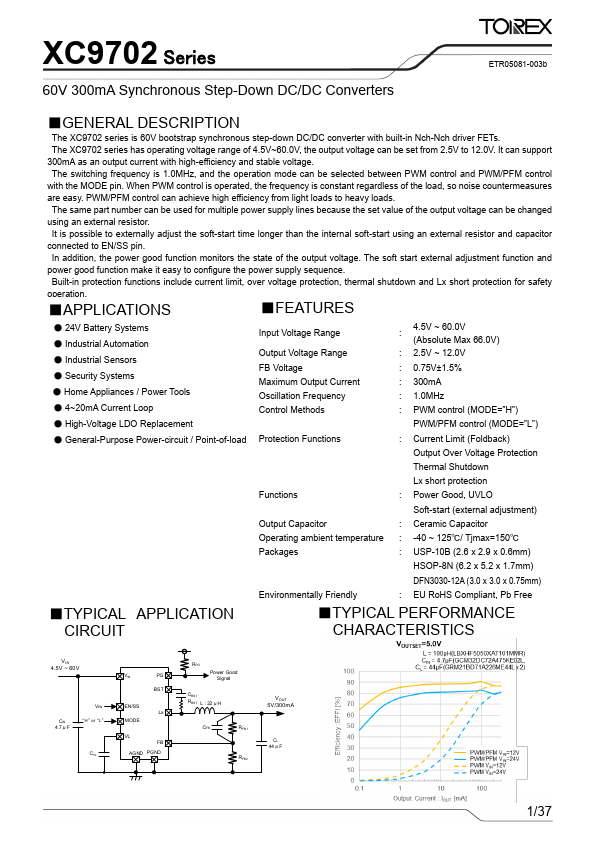

Datasheet Summary
XC9702 Series
60V 300mA Synchronous Step-Down DC/DC Converters
ETR05081-003b
- GENERAL DESCRIPTION
The XC9702 series is 60V bootstrap synchronous step-down DC/DC converter with built-in Nch-Nch driver FETs.
The XC9702 series has operating voltage range of 4.5V~60.0V, the output voltage can be set from 2.5V to 12.0V. It can support
300mA as an output current with high-efficiency and stable voltage.
The switching frequency is 1.0MHz, and the operation mode can be selected between PWM control and PWM/PFM control with the MODE pin. When PWM control is operated, the frequency is constant regardless of the load, so noise countermeasures are easy. PWM/PFM control can achieve high...
