TOREX SEMICONDUCTOR XCL108
The ultra-low current consumption of 400nA and PWM/PFM auto-switching control have dramatically improved the efficiency of the output current of 10μA or less, which was difficult to achieve in the past. It contributes to keeping battery life longer and reducing battery size smaller.| Part No. | XCL108 |
|---|---|
| Datasheet | XCL108 Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | 400nA Ultra-Low Quiescent 0.5A PWM/PFM Inductor Built-in Step-up DC/DC Converters |
| Buy | Stock & Price |

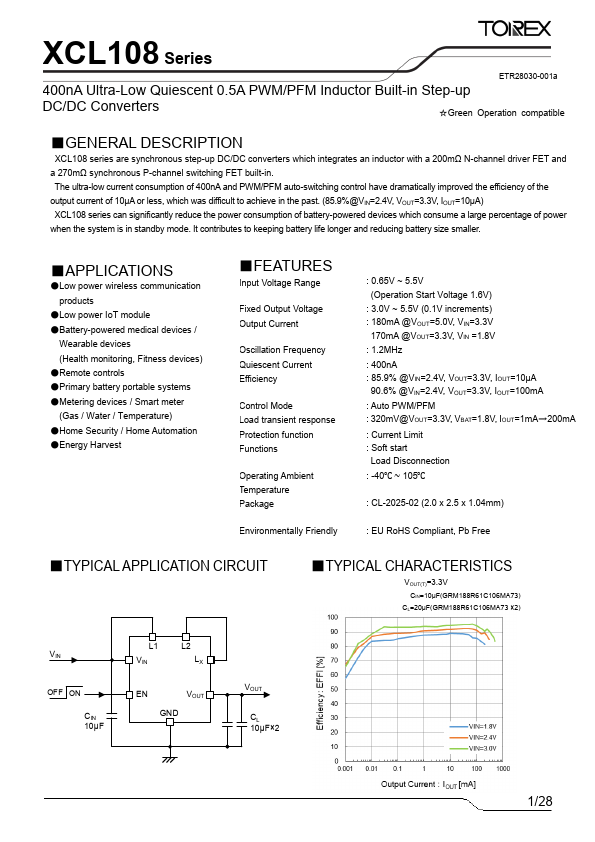

GENERAL DESCRIPTION
XCL108 series are synchronous step-up DC/DC converters which integrates an inductor with a 200mΩ N-channel driver FET and a 270mΩ synchronous P-channel switching FET built-in. (85.9%@VIN=2.4V, VOUT=3.3V, IOUT=10μA) XCL108 series can significantly reduce the power consumption of battery-powered devices which consume a large percentage of power when the system is in standby mode.●
APPLICATIONS
●Low power wireless communication products●Low power IoT module
●Battery-powered medical devices / Wearable devices (Health monitoring, Fitness devices)
●Remote controls
●Primary battery portable systems
●Metering devices / Smart meter (Gas / Water / Temperature)
●Home Security / Home Automation
●Energy Harvest
●
FEATURES
Input Voltage Range Fixed Output Voltage Output Current Oscillation Frequency Quiescent Current Efficiency Control Mode Load transient response Protection function Functions Operating Ambient Temperature Package Environmentally Friendly : 0.65V ~ 5.5V (Operatio...
