Datasheet Details
| Part number | XD6239 |
|---|---|
| Manufacturer | Torex Semiconductor |
| File Size | 1.08 MB |
| Description | 300mA highspeed LDO regulator |
| Datasheet |

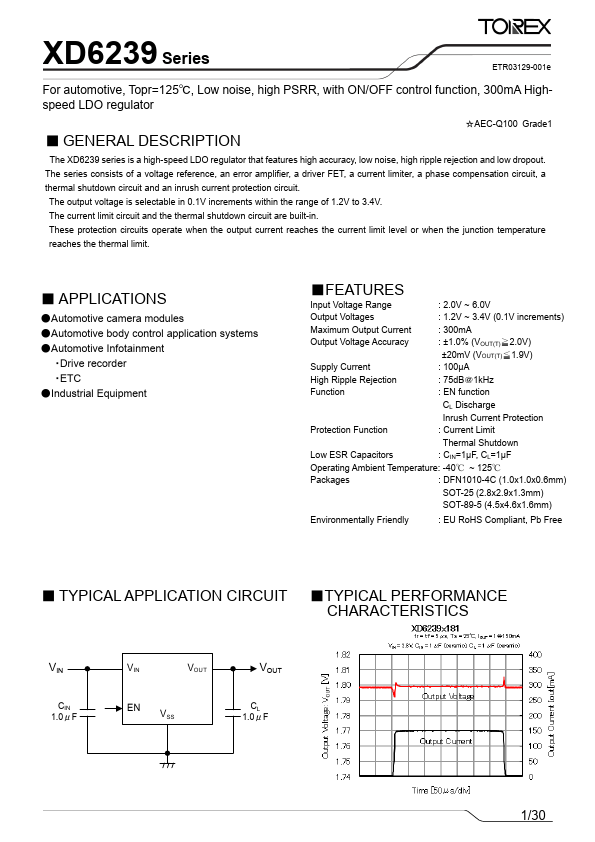

 XD6239 Datasheet
|
|
|
General Description
☆AEC-Q100 Grade1
The XD6239 series is a high-speed LDO regulators that
Key Features
- put Voltage Range : 2.0V ~ 6.0V Output Voltages : 1.2V ~ 3.4V (0.1V increments) Maximum Output Current : 300mA Output Voltage Accuracy Supply Current : ±1.0% (VOUT(T)≧2.0V) ±20mV (VOUT(T)≦1.9V) : 100μA High Ripple Rejection : 75dB＠1kHz Function : EN function CL Discharge Inrush Current Protection Protection Function : Current Limit Thermal Shutdown Low ESR Capacitors : CIN=1μF, CL=1μF Operating Ambient Temperature: -40℃ ~ 125℃ Packages : DFN1010-4C (1.0x1.0x0.6mm) SOT-25 (2.
